2020 Nautic Africa 85M Frontier

14

Report error

2020 Nautic Africa 85M Frontier

No gallery images

2020 Nautic Africa 85M Frontier
Preview

Boat Overview

Boat Description

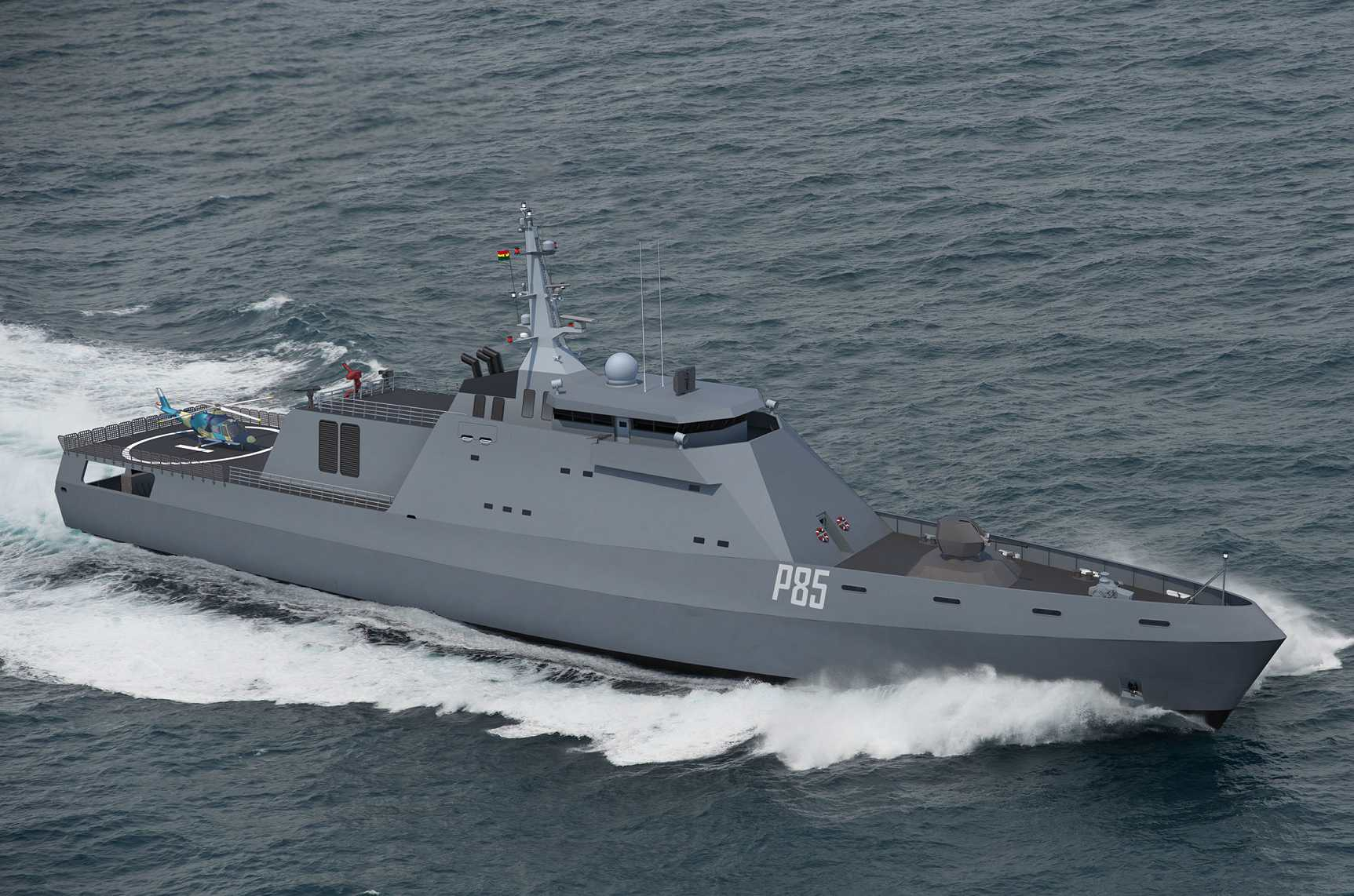

The 85m FRONTIER Offshore Patrol Vessel is a tailor-made vessel to meet specific User requirements and very versatile and flexible to meet a wide range of operational demands in territorial and EEZ waters.

Designed with simplicity and supportability in mind, the FRONTIER 85m OPV has exceptional sea-keeping characteristics and is ideal for maritime patrol and surveillance operations, boarding operations, helicopter support and has a multi-purpose mission deck.

The vessel is powered by two diesel driven waterjets and the vessel is fitted with two bow thrusters. A range of 5000nm can be achieved at a cruise speed of 12 knots and the vessel has an impressive maximum speed of 25 knots. The vessel has an endurance of 21 days making it ideal for longer, offshore missions.

Specs

Main
NameValue
MakerNautic Africa
Maker websitehttps://www.nauticafrica.com
Model85M Frontier
First built hull2020
Boat typePower
CategoryPatrol Boat
Hull typeMonohull
Hull materialIron and Steel
General
NameValue
Top speed40.23 kmh
Cruising speed19.31 kmh
Length overall84.98 m
Length at waterline81.9 m
Beam overall13.38 m
Draft maximum3.38 m
Displacement1,449,998.91 kg
Designer
NameValue
Simple Empty
No data
Rig & Sails
NameValue
Simple Empty
No data
Engine
NameValue
Engine A
MakerCAT
ModelC280-12
Engine B
MakerCAT
ModelC280-12
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Displacement to Length (D/L) 21.97
Capsize Screening Formula (CSF) 1.19
