Design Office Siltala

Fiberglass

<p>Monohull boats are vessels with just one hull, as the name itself suggests. They can be monohull <a href="https://theboatdb.com/boats/type/sail">sailboats</a> or <a href="https://theboatdb.com/boats/type/power">powerboats</a>, which means they can be powered by an engine or by the wind. In addition, monohull boats can have a high level of luxury on board and can therefore be referred to as monohull yachts. At TheBoatDB you can look into monohull boats and explore their features. In addition, you can filter your search through monohull sailboat manufacturers and explore all models available on our site. Compare all models on our website from the comfort of your home.</p>

Monohull

nauticat-321-1_1582814644

Factory

Nauticat Yachts

Euro

Symmetric spinnaker

Stormjib

<p>The category of sailboats includes both <a href="https://theboatdb.com/boats/category/daysailer">sailing yachts</a> which are luxurious and charming vessels used for recreational purposes, as well as <a href="https://theboatdb.com/boats/category/cruiserracer">racing sailboats</a> that are used for sports. Some have a single hull while others can have two or three. Compare different types of sailboats through sailing boat specs on TheBoatDB and find out the best one for you. Choose according to boat specs, and explore sailboats that vary from very large vessels, appropriate for ocean cruising, to small ones used to roam the shores.</p>

Name	Value
Maker	Nauticat Yachts
Maker website	https://www.nauticat.com
Model	Nauticat 321 Deep draft
First built hull	1999
Version	Deep draft
Price	198,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	11.25 kmh
Mast height	13.84 m
Length overall	9.78 m
Length at waterline	8.29 m
Beam overall	3.26 m
Headroom	1.89 m
Draft maximum	1.56 m
Displacement	6,000.11 kg
Ballast weight	1,799.85 kg
Ballast type	Lead
Helm	2 wheels
Rudder	1 semi-spade rudder
Cockpit	Closed aft cockpit

Name	Value
Naval architect
Name/Studio	Design Office Siltala
Website	http://www.nauticat.com/

Name	Value
Mast	45.4
Spars	Mast and boom in Aluminum
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	59.18 sq.m
Downwind sail area	106 sq.m
Mainsail A	280.00
Spinnaker A	861.00
Spinnaker A	203.00
Spinnaker A	65.00

Name	Value
Engine A
Power	39 HP
Type	Inboard engine ; Diesel
Engine B

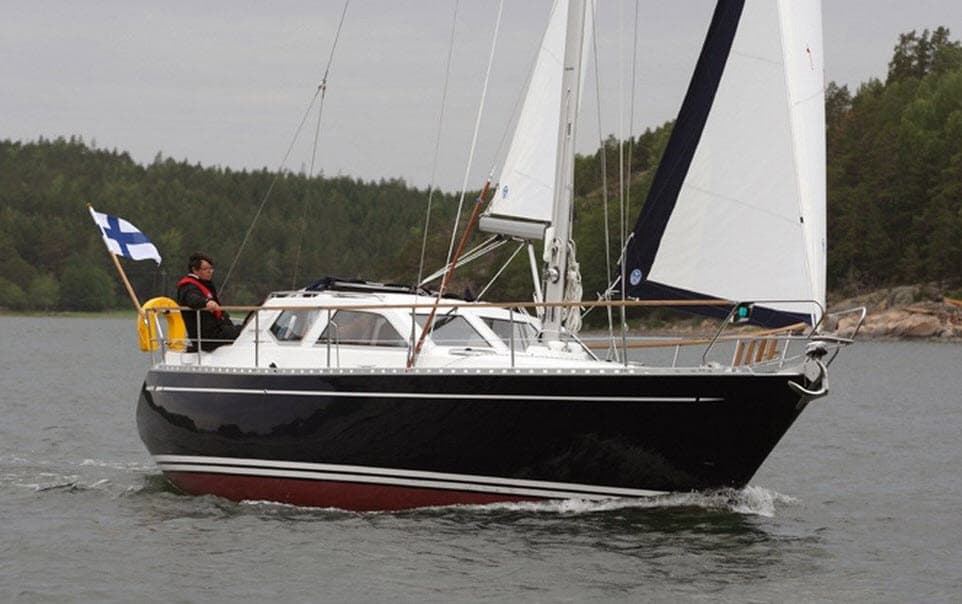

1999 Nauticat Yachts Nauticat 321 Deep draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

9.78 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.04
Upwind SA to Displacement	18.23
Downwind SA to Displacement	32.65
Hull Displacement Speed	0.04
Displacement to Length (D/L)	6.99
Ballast to Displacement (B/D)	0.3
Capsize Screening Formula (CSF)	1.81
