Name	Value
Maker	Nauticat Yachts
Maker website	https://www.nauticat.com
Model	Nauticat 321 Standard
First built hull	1999
Version	Standard
Price	198,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	11.25 kmh
Mast height	13.84 m
Length overall	9.78 m
Length at waterline	8.29 m
Beam overall	3.26 m
Draft maximum	1.68 m
Displacement	6,200.15 kg
Ballast weight	1,999.89 kg
Ballast type	Lead
Helm	2 wheels
Rudder	1 semi-spade rudder
Cockpit	Closed aft cockpit

Name	Value
Naval architect
Name/Studio	Design Office Siltala
Website	http://www.nauticat.com/

Name	Value
Mast	45.4
Spars	Mast and boom in Aluminum
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	53.51 sq.m
Downwind sail area	102.29 sq.m
Mainsail A	240.00
Spinnaker A	861.00
Spinnaker A	203.00
Spinnaker A	65.00

Name	Value
Engine A
Power	39 HP
Type	Inboard engine ; Diesel
Engine B

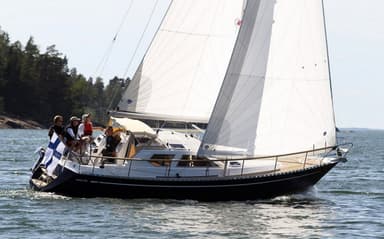

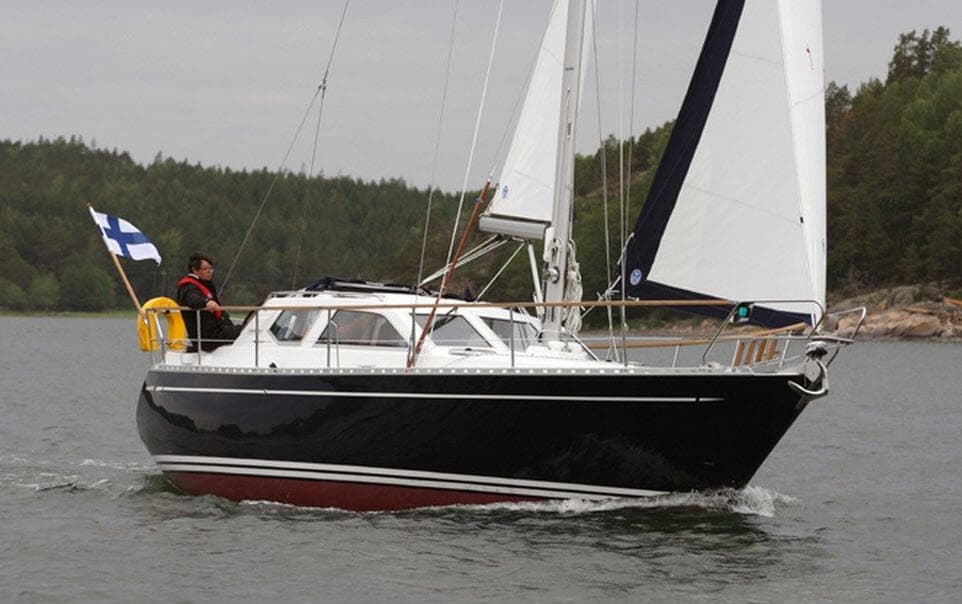

1999 Nauticat Yachts Nauticat 321 Standard

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

9.78 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	6.72
Upwind SA to Displacement	16.13
Downwind SA to Displacement	30.83
Hull Displacement Speed	6.99
Displacement to Length (D/L)	303.24
Ballast to Displacement (B/D)	32.26
Capsize Screening Formula (CSF)	1.79
