Boat Overview
Type
Maker
Hull type
Hull Material
Composite_Material
Category
Boat length (LOA)
11 m
Specs
Main
| Maker | Nautor Swan |
| Maker website | https://www.nautorswan.com |

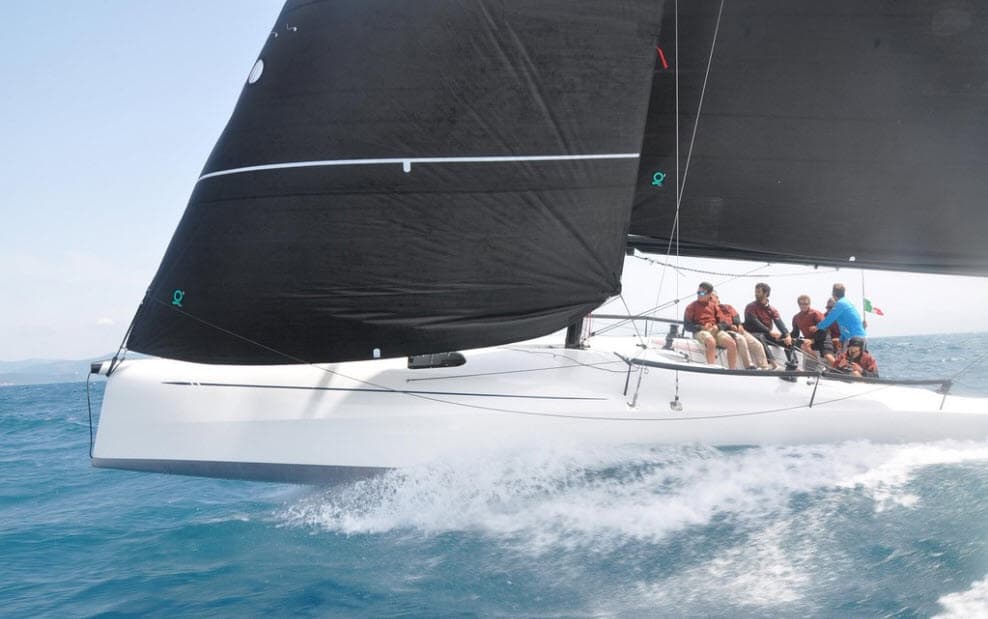

| Model | Club Swan 36 |
| First built hull | 2019 |
| Price | 385,000 € |
| Boat type | Sail |
| Category | Racer Boats |
| Hull type | Monohull |
| Hull material | Composite_Material |
General
| Top speed | 12.71 kmh |
| Length overall | 11 m |
| Length at waterline | 10.61 m |
| Beam overall | 3.38 m |
| Draft maximum | 2.74 m |
| Displacement | 2,590.01 kg |
| Helm | 1 tiller |
| Rudder | 2 spade rudders |
| Cockpit | Open aft cockpit |
Designer
| Naval architect | |
| Name/Studio | Juan Kouyoumdjian |
| Website | http://www.juanyachtdesign.com/ |
Rig & Sails
| Spars | Mast in Carbon fiber and boom in Aluminum |
| Standing rigging | Single-strand (ROD) discontinuous |
| Number of spreaders | 1 |
| Spreaders angle | Swept-back |
| Upwind sail area | 88.26 sq.m |
| Downwind sail area | 188.78 sq.m |
Engine
| Engine A | |
| Engine B | |
| Power | 14 HP |
| Type | inboard |
Storage
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.12 |
| Upwind SA to Displacement | 47.59 |
| Downwind SA to Displacement | 101.8 |
| Hull Displacement Speed | 0.12 |
| Displacement to Length (D/L) | 7.9 |
| Capsize Screening Formula (CSF) | 2.49 |
