Name	Value
Maker	Nautor Swan
Maker website	https://www.nautorswan.com
Model	Swan 115 FD Standard
First built hull	2015
Version	Standard
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	22.39 kmh
Length overall	35.23 m
Length at waterline	32.86 m
Beam overall	8.14 m
Draft maximum	4.72 m
Displacement	110,599.79 kg
Ballast weight	32,000.01 kg
Ballast type	Lead
Helm	2 wheels
Rudder	2 spade rudders
Cockpit	Open aft cockpit

Name	Value
Naval architect
Name/Studio	Frers Naval Architecture & Engineering
Website	http://www.germanfrers.com

Name	Value
Spars	Mast and boom in Carbon fiber
Number of spreaders	4
Spreaders angle	Swept-back
Upwind sail area	659.8 sq.m
Downwind sail area	985.98 sq.m
Mainsail A	3832.00
Mainsail B	3270.00
Spinnaker A	6781.00

Name	Value
Engine A
Power	450 HP
Type	Inboard engine ; Diesel
Engine B

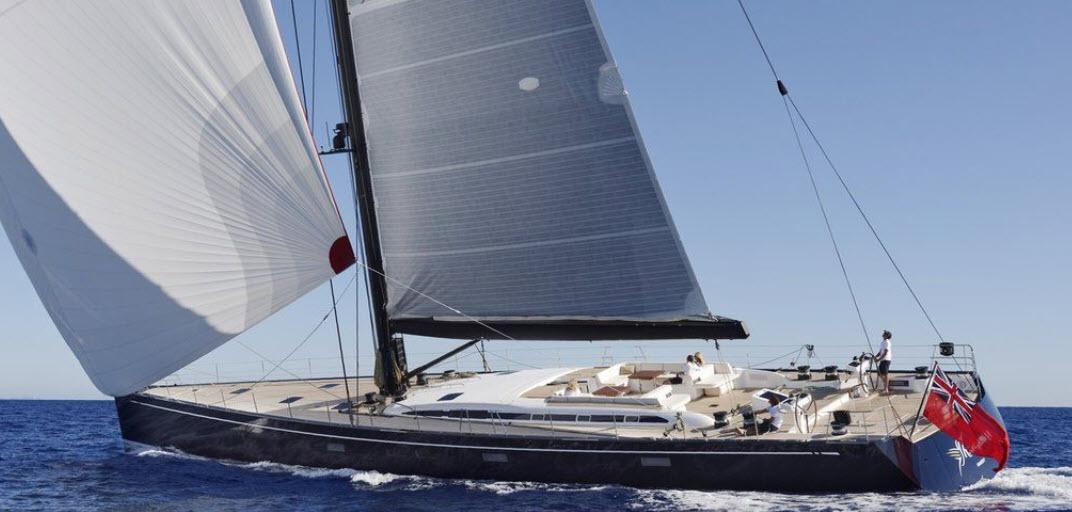

2015 Nautor Swan Swan 115 FD Standard

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

35.23 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.05
Upwind SA to Displacement	29.13
Downwind SA to Displacement	43.53
Hull Displacement Speed	0.05
Displacement to Length (D/L)	13.91
Ballast to Displacement (B/D)	0.29
Capsize Screening Formula (CSF)	1.71
