Frers Naval Architecture & Engineering

swan 66 1

swan 66 2

swan 66 3

swan 66 4

swan 66 5

swan 66 6

Fiberglass

<p>Monohull boats are vessels with just one hull, as the name itself suggests. They can be monohull <a href="https://theboatdb.com/boats/type/sail">sailboats</a> or <a href="https://theboatdb.com/boats/type/power">powerboats</a>, which means they can be powered by an engine or by the wind. In addition, monohull boats can have a high level of luxury on board and can therefore be referred to as monohull yachts. At TheBoatDB you can look into monohull boats and explore their features. In addition, you can filter your search through monohull sailboat manufacturers and explore all models available on our site. Compare all models on our website from the comfort of your home.</p>

Monohull

swan-66-1_1586966940

Factory

Nautor Swan

Euro

<p>The category of sailboats includes both <a href="https://theboatdb.com/boats/category/daysailer">sailing yachts</a> which are luxurious and charming vessels used for recreational purposes, as well as <a href="https://theboatdb.com/boats/category/cruiserracer">racing sailboats</a> that are used for sports. Some have a single hull while others can have two or three. Compare different types of sailboats through sailing boat specs on TheBoatDB and find out the best one for you. Choose according to boat specs, and explore sailboats that vary from very large vessels, appropriate for ocean cruising, to small ones used to roam the shores.</p>

Name	Value
Maker	Nautor Swan
Maker website	https://www.nautorswan.com
Model	Swan 66 S
First built hull	2008
Price	3,800,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	16.19 kmh
Length overall	20.12 m
Length at waterline	17.22 m
Beam overall	5.43 m
Draft maximum	3.23 m
Displacement	30,000.12 kg
Ballast weight	9,399.79 kg
Ballast type	Lead
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Open aft cockpit

Name	Value
Naval architect
Name/Studio	Frers Naval Architecture & Engineering
Website	http://www.germanfrers.com

Name	Value
Spars	Mast and boom in Carbon fiber
Standing rigging	Single-strand (ROD)
Number of spreaders	3
Spreaders angle	Swept-back
Upwind sail area	218.04 sq.m
Mainsail A	1309.00

Name	Value
Engine A
Power	163 HP
Type	Inboard engine ; Diesel
Engine B

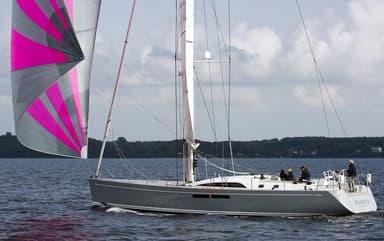

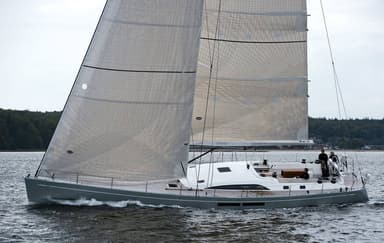

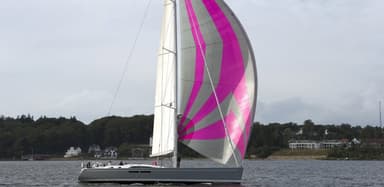

2008 Nautor Swan Swan 66 S

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

20.12 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	12.81
Upwind SA to Displacement	22.97
Hull Displacement Speed	10.07
Displacement to Length (D/L)	163.71
Ballast to Displacement (B/D)	31.33
Capsize Screening Formula (CSF)	1.76
