With popularity of the “northwest trawler”-style boat on the rise, PAE set out to create a big modern passagemaker that fused this salty look with the advanced systems of the latest Nordhavns. The result was the Nordhavn 76: developed for those yachtsmen who want an aft pilothouse boat which carries its shore boats on the foredeck. Like our venerable Nordhavn 62, the pilothouse of the N76 is set aft, carries its crane forward and can launch its shore boats off either the port or starboard side. Based on the hull form and specifications of the N72, the simple goal of this model was to create a small superyacht which was true to the rugged ocean going heritage of other Nordhavns while at the same time stunning in her elegance, fit and finish, systems and engineering.
Nearly a year was spent in the tooling and mold-building phase of this project to create the hundreds of highly polished molds required to construct this complex boat in gleaming gel coat finished GRP (fiberglass) construction.&nbsp;An interior decorator was commissioned to up the degree of style most megayachts are known for, including crown moldings, granite, leather, well-engineered lighting, and the finest appliances. Though a little more glitzy, there’s no denying that a Nordhavn exists at the heart of this boat. Numerous handrails, half-inch tempered glass windows, watertight doors and bulkheads and many other features essential for safe operation offshore.
Like the 72, the fact that this boat is so complete, a regular options list does not exist. Standard on the 76 is chilled water air conditioning, TRAC stabilizers, bow and stern thrusters, Marquipt davit, wing engine, dry exhaust, windlass and ground tackle, and a lot more. Simply add your electronics package, tenders on deck, personal affects you’re ready to go.
The standard propulsion configuration of the N76 is classic Nordhavn. The single main engine is the highly respected John Deere 6135AFM in the 500 hp configuration and with its 20,000-hour life expectancy, should outlast most of us. Dry exhaust and keel cooling are standard as is the Lugger wing engine.


General

Cushions to be covered with owners choice of ultraleather
Interior steps to all be teak
Interior lockers and drawers to be locking Timage with chrome push button
Interior overhead panels – Majilite Finesse Natural. Removable, held in place by Velcro
Interior door lock sets to be Mobella “Mc Coy” chrome brass
Hanging lockers to have automatic interior lights controlled by micro switch. Lined with “Cedar wood”
Solid (non louvered) cored doors for heads and staterooms 1″ (2.5 cm) thick
Interior teak woodwork including cabin sole in pilot house to be varnished with 60% satin varnish
Salon tables, pilothouse table to be varnished with high gloss varnish
All hand rails to be teak
Structural bulkheads dividing staterooms and heads to have 3/4” (1.9 cm) furring strips on each side to allow application of 3/4” (1.9 cm) thick sound insulation. The finished bulkhead material of 3/8” (9.5 mm) thickness to be applied over this
Mirrors are located thru out vessel
Ceiling material in all showers to be FRP same as the older 57’s
All interior drawers to have metal drawer slides
Install Orcas magnetic door catches on all interior doors
All drawers to have plywood finish on the inside
All lockers in the galley, heads, laundry room and pilothouse dash area to be white formica
Lockers in the salon, staterooms and the pilothouse settee and desk area to be teak veneer
All book shelves to have teak fiddles

Galley

Sub Zero #561 side-by-side refrigerator/freezer with teak panels
One front loading U-Line 75F freezer located in laundry area lower level
Counter top: Granite with bull nosed edges, buyer’s choice from the Taiwan Marble Association catalogue
Floors: Buyer’s choice of tile from the San Marino catalogue, Symphony brand tiles
Cabinet paneling: All teak
Interior locker finish to be white formica
Interior drawer finish to be plywood
Thermador stove/oven #PRD304EHU LPG stove with electric oven
GE “Advantium” convection/microwave oven #SCQ2001KSS with exhaust blower
GE “Monogram” trash compactor #ZCG150LSS 15″ (38.1 cm) stainless steel
Bosch dishwasher #SHX57C05UC 24″ stainless steel
Insinkerator garbage disposal “Pro Essential” 3/4hp
Stove alcove to be lined with granite
Install pot holder rail system around the stove

Main Salon

Floors: Carpet with Soundown underlayment pad
Cabinet/paneling: Varnished teak
Dinette table: Teak with high gloss varnish. Six (6) teak chairs with upholstered seats
Interior locker interior finish: Teak
Interior drawer interior finish to be plywood
Install Aritex TV lift for a 42″ (106.7 cm) TV. (TV not included)
Teak valance/air con soffet port and starboard and aft sides of salon
Two overhead teak hand rails
Teak coffee table starboard side with high gloss varnish
Settee along starboard side with storage underneath

Master Cabin

Floors: Carpet with Soundown underlayment pad
Cabinet/paneling: Varnished teak
Hanging locker interior finish: “Cedar wood” natural finish
TV locker with retractable doors (TV not included)
Mattress: Standard king size
Locker interior finish to be teak
Drawer interior finish to be plywood

Master Head

Floors: Buyer’s choice of tile from the San Marino catalogue, Symphony brand tiles
Counter top: Granite w/ bull nosed edges, buyer’s choice from the Taiwan Marble Association catalogue
Mirrors and towel bars: As shown on drawings
Molded FRP shower stall
Cabinet/joiner work: All teak
Drawer interior finish to be plywood
Locker interior finish to be white formica
Head exhaust blower with 30 minute timer
Toilet paper holders Keuco #14962
Towel bar # Keuco #14901 24″ (61cm)
Frameless clear glass shower door and chrome hardware
Ceiling material in shower to be FRP covered plywood same as the 57’s

Guest Head Forward

Floors: Buyer’s choice of tile from the San Marino catalogue, Symphony brand tiles
Counter top: Granite w/ bull nosed edges, buyer’s choice from the Taiwan Marble Association catalogue
Mirrors above sink
Molded FRP shower stalls with FRP ceiling
Locker interior finish to be white formica
Drawer interior finish to be plywood
Exhaust blower with 10 minute timer
Toilet paper holders Keuco #14962
Towel bar # Keuco #14901 24″ (61 cm)
Aluminum and glass bi-fold shower door

Pilothouse

Floors: Teak and spruce
Cabinet/joiner work: Varnished teak
Countertops and instrument panel faces: Formica #939 dark gray
Dinette table: Teak with high gloss varnish
Settee with chart drawers under
Helm seat – Two (2) Stidds 500N-2X2 Low Back “Slimline”. Vinyl and pedestal powdercoat color are buyer’s choice
Chart light: Imtra #IL5313 Touch LED light, bulkhead mount 19″ (48.26 cm)
Book shelves and chart drawers
Hand rails: One (1) each on the port and starboard forward doors
Compass- Ritchie SS 5000 5″ (12.7 cm) mounted on teak block
Dash area locker to have white formica interior finish
Settee area lockers to have teak interior finish
Drawer throughout the pilothouse to have plywood finish
Pilothouse dash console to wrapped in buyer’s choice of leather

Pilothouse Head

Floors: Teak and spruce
Cabinet/joiner work: All teak
Exhaust blower with 10 minute timer
Counter top: Granite w/ bull nosed edges, buyer’s choice from the Taiwan Marble Association catalogue
Locker interior finish: White Formica
Drawer interior finish: plywood
Towel bar # Keuco #14901 24″ (61 cm)
Toilet paper holders Keuco #14962
Mirror above sink

Lower Level Guest Cabin

Floors: Carpet with pad
Cabinetry and joiner work: Teak
Mirrors above dressers x two (2)
Hanging locker with “Cedar wood” lining
Book shelves and lockers outboard of berths
Drawers under berths (4 total)
Mattresses: Standard twin size x two (2) 5″ (12.7 cm) foam covered in cotton mattress ticking
Forced air ventilation system with adjustable blower
Locker interior finish to be teak
Drawer interior finish to be plywood

Lower Level Head

Floors: Buyer’s choice of tile from the San Marino catalogue, Symphony brand tiles
Cabinetry: Teak
Shower to be molded FRP, ceiling also to be FRP
Exhaust blower with 10 minute timer
Counter top: Granite w/ bull nosed edges, buyer’s choice from the Taiwan Marble Association catalogue
Aluminum/glass bi-fold shower door
Towel bar # Keuco #14901 24″ (61 cm)
Toilet paper holders Keuco #14962
Locker interior finish to be white formica
Drawer interior finish to be plywood


Show More…
Show Less…


Fiberglass

<p>Maker - Compare boat manufacturers on TheBoatDB and find the best boat and brand for you. You can look up boats by maker and filter your search to save some time. Check out the various models they have on our database and explore in detail the shape, performance, look, interior, and more specifications and features.</p>

Other

7267899_20200220091509864_1_XLARGE

Nordhavn

Euro

<p>Powerboats are vessels with an onboard or outboard engine that powers them and allows them to gain speed and move on the water in a way that feels like it is just sliding on the surface. As such, they are also known as speedboats. Learn more about powerboats and their speed on TheBoatDB. Pick a model and check out its maximum velocity, <a href="https://theboatdb.com/maker">manufacturer</a>, whether it is an outboard motorboat or inboard one, and other features and specifications on our online database. Check out all types of powerboats and compare side by side the ones that pique your interest the most.</p>

Name	Value
Maker	Nordhavn
Maker website	https://www.nordhavn.com
Model	76
First built hull	2022
Boat type	Power
Category	Motor Yacht Boats
Hull type	Other
Hull material	Other

Name	Value
Length overall	23.24 m
Length at waterline	21.03 m
Draft maximum	2.34 m

Name	Value
Engine A
Engine B

Name	Value
Hull Displacement Speed	11.13
Displacement to Length (D/L)	11.13

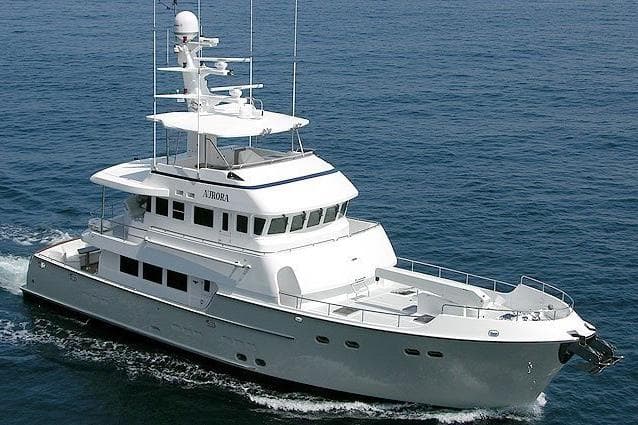

2022 Nordhavn 76
