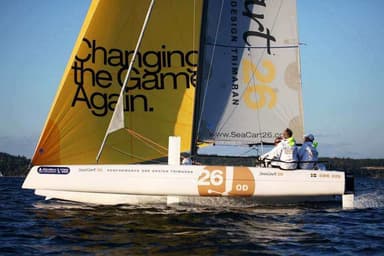

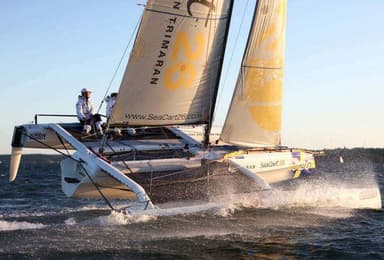

2011 Oceanlake Marine Seacart 26
Preview

Boat Overview

  • Type
    sail
  • Maker
    Oceanlake Marine
  • Hull type
    trimaran
  • Hull Material
    composite_material
  • Category
    -
  • Boat length (LOA)
    7.92 m

Discover the Gold

Hide ads, help pay for servers & development and unlock Gold only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerOceanlake Marine
Maker websitehttp://www.oceanlakemarine.com/
ModelSeacart 26
First built hull2011
Boat typesail
Hull typetrimaran
Hull materialcomposite_material
General
NameValue
Mast height13.04 m
Length overall7.92 m
Beam overall5.64 m
Draft maximum1.25 m
Displacement800.00 kg
Helm2 tillers
Rudder2 rudders (on amas)
CockpitClosed aft cockpit
Trailerable
Designer
NameValue
Name/StudioMarc Lombard
Websitehttp://www.marclombard.com/
Rig & Sails
NameValue
Riggingfractional_rig_sloop
Mast42.8
SparsMast and boom in Carbon fiber
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angleSwept-back (diamond)
Upwind sail area40.69 sq.m
Mainsail A310.00
Engine
NameValue
TypeOutboard Engine ; Gas
Power6 HP
Storage
NameValue
No Data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 33.98
Upwind SA to Displacement48.01
Capsize Screening Formula (CSF) 6.13
