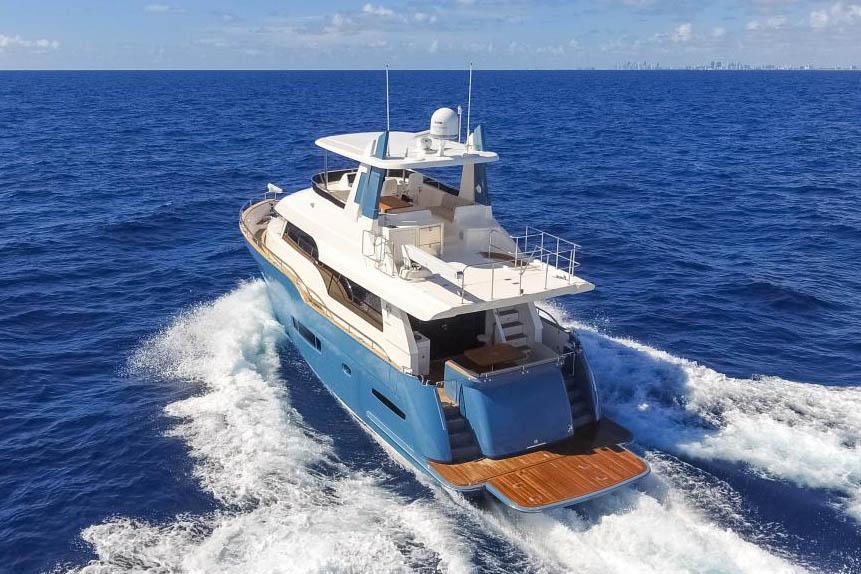

The 620 Trident has been specifically designed to combine contemporary style with superior overall performance, and is considered a fast semi-displacement yacht. The attractive plumb bow hull design, chic interior styling elements, and additional length options including the 720, 980, and 106 models, create a perfect yacht for long-range passagemaking or spontaneous weekend excursions.


Hull Construction

Vinylester resin infused FRP hull with PVC core sandwich construction
Vinylester barrier lamination for osmosis protection
Molded stringer/grid system
Hull superstructure to be white gel coat
Two (2) coats of black antifouling paint over three (3) coats of epoxy primer below waterline
Integrally molded rub rails with stainless steel capping
Full length keel extends below running gear
CE-approved stainless steel portlights
Boat construction from only 4 major molds
All deck and hull area hardware attachments are finished with solid lamination – no coring
Bilge area finished smooth and coated with bright white top coat
Windows with 3/8" tempered safety glass in salon and ½' tempered safety glass in pilothouse
WheelHouse™ Technologies, Inc. Marine Maintenance System

Mechanical/Plumbing
MECHANICAL

Copper bonding system to all underwater fittings with zinc anodes
Fresh water lines
Headhunter 24v DC fresh water pump with accumulator tank
Three (3) 24v DC automatic shower sump systems with external pump
Accessible wiring chaseway throughout
Extremely quiet central ventilation system for heads and bilge areas

TANKAGE

All tankage located in the belly giving more storage and space throughout
One (1) FRP integral holding tank with a max capacity of 150 US gallons (568 lts) with one (1) Headhunter diaphragm/discharge pump
One (1) stainless steel fresh water tank with a max capacity of 185 US gallons (700 lts)
One (1) aluminum fuel tank with a total capacity of 800 US gallons (3028 lts)
Inspection and cleaning ports on all tanks
20 gallon water heater&nbsp;

LAZARETTE

Coin dot flooring
One (1) 110v AC GFI outlet
FRP or Formica finish on walls
Main electrical distribution panels with gauges and circuit breakers for AC
2.5kw inverter/charger (24v DC to 115v AC 60hz)&nbsp;

ENGINE ROOM

Acoustically insulated stand-up engine room lined with sound absorbing material to highest standard.
Aluminum checker plate flooring
Standard twin Cummins QSB 6.7ltr 550bhp HO diesel engines with Zeus pod drive system
One (1) Kohler quiet diesel 20kw generator 60Hz
Direct expansion air conditioning system
Ball-valve bronze seacocks on all through-hulls below waterline
Oil change pump for engines and generator
One (1) 50amp isolation transformer
Two (2) Racor 1000 MA single fuel filters for main engines
One (1) Racor 1000 MA single fuel filters for generator
Fuel polishing system
Fuel management system
Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers, engine, generator shut down
Two (2) automatic bilge pumps 24v DC
Fire system and bilge high-water alarm system with warning panel
Fresh water hose bibb
AGM (Absorbed Glass Matt) batteries in FRP boxes:

Two (2) engine banks with two (2) 8D batteries for each bank
One (1) house bank with four (4) 8D batteries with a total 510 amp-hours&nbsp;(24VDC) in lazarette
One (1) generator bank with one (1) battery
One (1) 12v battery charger
One (1) 24v battery charger

Two (2) battery isolators
Two (2) 24v DC blowers
Two (2) 110v AC GFI outlets with water proof covers
316 stainless steel safety rails around engines
Watertight bulkhead
Watertight aluminum engine room door

Exterior/Decks
AFT DECK AREA

Aft deck with teak decking
FRP built-in swim platform with teak decking
Hydraulic swim platform lift (tender maximum LOA is 10')
Stainless steel cassette swim ladder on swim platform – deployable from water
Stairway built-in to port and starboard side from swim platform to aft deck with stainless steel tube gate doors and laid teak steps
Aft deck FRP bench seating
Sunbrella® furniture fabric for aft deck and sunbed
Aft deck door and opening window
FRP weather tight door on transom
Transom shower in recessed box with hot and cold water supply
Fresh water wash down outlet
Stair to sun deck
Side gates port and starboard
One (1) 50 amp shorepower inlet with single Glendinning cable master for 110v/220v 60hz
One (1) 110v AC GFI outlet
316 stainless steel heavy duty cleats secured to stainless steel backing plates on bulwarks
Deck scuppers piped out through hull at boot stripe
316 Stainless steel hand rail to and from aft deck
Teak cap rails around the settee

SIDE DECKS

Teak side decks
Weathertight door opening into pilothouse on starboard side only
House side fixed windows with tinted tempered glass
Two (2) sets of spring-line cleats per side&nbsp;
One (1) 316 stainless steel cleat per side set on anchor plinth
Molded FRP cap rails

FORE DECK

Foredeck with white non-skid surface
Window on front of foredeck trunk
316 stainless steel rails on bulwarks per designer details
316 stainless steel stanchions to support handrail
Deck lockers within coach house sides forward either side finished in white epoxy paint
Sun pad with hinged backrest and hinged seating backrest
Molded FRP cap rails
316 stainless steel anchor roller at bow
75lb stainless steel Ultra anchor with 393' long 10mm high test chain
Lofrans x3 1700w, (24v) vertical windlass with wireless remote
Custom bow flag staff
Salt water and fresh water stainless steel faucets inside foredeck lockers

FLYBRIDGE

Wide beam deck with white non-skid surface and ample storage space
Venturi windscreen with 316 stainless steel rails
Molded FRP steering console with engine controls
Electronics console
4" magnetic compass
Cummins Steer by Wire system
Steering wheel
One (1) Stidd helm seat with powder coated base and naugahyde fabric
Fire system repeater alarm
One (1) L-shaped settee with Sunbrella® furniture fabric for cushions and one (1) white FRP table to port
FRP seating with storage under to port and starboard
Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
Dual trumpet air horn with compressor
Edson radar mast with navigation/anchor lights
ACR 24v DC searchlight with dual station controls
Two (2) 110v AC GFI outlets
One (1) 12v DC outlet

SUN DECK

Deck with white non-skid surface

Interior/Accomodations
INTERIOR DECOR

Interior décor is offered in three (3) different color palettes from an Outer Reef Trident Inc standard selection&nbsp;

SALON

Custom wing door entrance from aft deck
Fixed windows in house sides with medium 3/8" tinted tempered safety glass
Valance over windows with LED rope lighting
Vinyl headliner
Built-in L-shaped settee
Entertainment center cabinet with TV lift
One (1) built-in end table
Air conditioning control panel
Cabinetry and lockers
Four (4) 110v AC outlets
One (1) USB outlet
One (1) TV outlet
Pre manufactured wood flooring
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers

GALLEY

Corian countertops with a stainless steel under mount sink
Cabinet for soap and sponges under the sink
Chrome faucet with pull out spray
Cabinets and cabinet doors with chrome push-button locks
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Two (2) 110v AC GFI outlets
Pre-manufactured wood flooring

APPLIANCES

Two (2) 2-drawer Vitrifrigo DW180 Inox RF 12/24v fridge/freezers (programmable)
Bosch fully integrated dishwasher (18" / 45cm)
Induction cooktop/hob (36" / 90cm)
Bosch compact oven/microwave (24" / 60cm)
Exhaust hood (24" / 60cm) **Aft galley configuration only
Garbage disposal
Miele washer and dryer

PILOTHOUSE

Settee on raised platform
Dining table
One (1) chart light
LED red and white bridge lights
Two (2) 110v AC outlets
One (1) 12v DC outlet
One (1) Stidd helm seat with powder coated base and naugahyde fabric
Wood steering wheel at pilothouse helm
Engine display screens – also available via Naviop system
Cummins electronic steering wheel
Cummins throttle and pod controls
4" magnetic compass
Two (2) stainless steel dual speed self-parking windshield wipers with wash down system
½" clear tempered glass in forward facing windshields
Vinyl headliner
Generator digital control panel
24v DC to 12v DC converter
Windlass up/down switch and control circuit breaker
Weathertight door opening out to starboard
Curved stairway leading to accommodations
Pre-manufactured wood flooring

LOWER HALLWAY

Curved stairway from pilothouse
Bulkhead finished with wall covering
Stackable washer and dryer
Access doors to staterooms
Pre-manufactured wood flooring

FULL BEAM MIDSHIP MASTER STATEROOM

King size berth
Drawer storage under the berth
LED rope lighting under the bed and at valance
One (1) walk in hanging locker with door
Automatic interior lights in lockers
Drawers with center guides and stops
Door stops and holders
Bulkheads with wall covering and /or veneer
Four (4) oversized CE-approved portlights
Three (3) 110v AC outlets
One (1) TV outlet
One (1) USB socket
Air conditioning control panel
Nightstand tables with two drawers each
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Pre-manufactured wood flooring

MASTER HEAD (ENSUITE)

Ensuite head with shower
CE-approved portlight in shower
Molded white FRP shower with custom frosted tempered glass door
Grohe hand shower with hose and soap dish
Central ventilation
Corian countertop with white under-mount sink
Chrome Grohe center-set single lever faucet at sink
Mirror
Storage cabinet under sink
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet
Pre-manufactured wood flooring

VIP STATEROOM FORWARD

Tapered queen-size berth
Storage drawers under the berth
Two steps on each side of the berth for easy access
LED rope lighting at valance
Four (4) CE-approved portlights
One (1) hanging locker
Automatic interior lights in lockers
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Bulkheads with wallpaper and veneer
Two (2) 110v AC outlets
One (1) USB socket
Air conditioning control panel
Pre-manufactured wood flooring

VIP HEAD (ENSUITE)

Ensuite head with shower
CE-approved portlights
Molded white FRP shower with custom frosted tempered glass door
Grohe hand shower with hose and soap dish
Central ventilation
Corian countertop with white under-mount sink
Chrome Grohe center-set single lever faucet at sink
Mirror
Storage cabinet under sink
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet
Pre-manufactured wood flooring

GUEST STATEROOM PORT

CE-approved portlight
Single berth with storage drawers underneath
LED rope lighting at valance
One (1) hanging locker
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Automatic interior light in locker
Door stops and holders
Bulkheads with upholstered panels
One (1) 110v AC outlet
Air conditioning with control panel
Pre-manufactured wood flooring

GUEST HEAD (ENSUITE)

Head with shower
Molded white FRP shower
Grohe hand shower with hose and soap dish
Central ventilation
Corian countertop with white under-mount sink
Chrome Grohe center-set single lever faucet at sink
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing
Mirror with medicine chest

Cruising/Safety Package

Six (6) 15" x 41" Polyform F-series black fenders
Twelve (12) 15' x ½" black fender lines
Four (4) 3/4" x 35' double-braid nylon black dock lines
Two (2) 3/4" x 50' double-braid nylon black dock lines
Twelve (12) Safeguard type I orange life vests for adults over 90 lbs
Six (6) Kiddie Mariner 2 ¾ lb M10 fire extinguishers
One (1) Bernard oil discharge placard
One (1) Bernard waste discharge placard
Two (2) Jim-Buoy 24" white ring buoys
Four (4) Perko chrome/brass 4-ring buoy holders
One (1) Orion alert/locate flare kit
One (1) Orion circumnavigator first aid kit
One (1) Orion safety blaster horn

Other
LIGHTING

All interior and exterior LED lighting as per the standard lighting plan

STANDARD AUDIOVISUAL PACKAGE

SALON VIDEO: 47" 1080p HDTV
SALON AUDIO: Samsung sound bar with separate subwoofer
AFT DECK AUDIO: Fusion cockpit co-axial speakers, pair, white, classic-grill
FLYBRIDGE AUDIO: Fusion cockpit co-axial speakers, pair, white, classic-grill
MASTER STATEROOM VIDEO: 43" 1080p HDTV with soundbar
VIP STATEROOM VIDEO: 22" 1080p HDTV

STANDARD NAVIGATION PACKAGE (SIMRAD)
FLYBRIDGE EQUIPMENT:

Two (2) NSS16" EVO2 SIMRAD combo displays including GPS
RS 90 VHF 2nd handset and speakers
1.8m Galaxy broadband antenna
NSPL-400 antenna splitter
Hailer horn
Cummins Vessel View with AutoPilot and trim tab functions

PILOTHOUSE EQUIPMENT:

Two (2) NSS16" EVO2 SIMRAD combo displays including GPS
SIMRAD 19 nm open array digital radar
CUMMINS Vessel View with Autopilot and trim tab functions
RS 90 SIMRAD Black Box VHF AIS/RX/PA (includes horn)
Naviop and network links

OTHER NAVIGATION EQUIPMENT:

Sonar Hub Module SIMRAD Broadband Sonar
NAIS-400 AIS CLASS B RX/TX

CAMERAS:

Iris 700 TVL 2.8 mm wide angle mini ball IR camera (engine room)
Iris 620 TVL clam shell static camera (aft deck)

ADDITIONAL ITEMS:

Shakespeare AM/FM VHF band separator

INCLUDED NAVIOP MONITORING SYSTEM

Shore and gen power inputs current and voltage
DC inverter charger current and voltage
House and engine batteries current and capacity
All tank levels including fuel, black and fresh water

MONITORED &amp; SWITCHED OUTPUTS ON/OFF

All lighting controls
Pumps throughout
Horn
Two (2) engine room fans and more


Show More…
Show Less…


Fiberglass

<p>Maker - Compare boat manufacturers on TheBoatDB and find the best boat and brand for you. You can look up boats by maker and filter your search to save some time. Check out the various models they have on our database and explore in detail the shape, performance, look, interior, and more specifications and features.</p>

Other

7585015_20200910125052345_1_XLARGE

Outer Reef Yachts

Euro

<p>Powerboats are vessels with an onboard or outboard engine that powers them and allows them to gain speed and move on the water in a way that feels like it is just sliding on the surface. As such, they are also known as speedboats. Learn more about powerboats and their speed on TheBoatDB. Pick a model and check out its maximum velocity, <a href="https://theboatdb.com/maker">manufacturer</a>, whether it is an outboard motorboat or inboard one, and other features and specifications on our online database. Check out all types of powerboats and compare side by side the ones that pique your interest the most.</p>

Name	Value
Maker	Outer Reef Yachts
Maker website	https://www.outerreefyachts.com
Model	620
First built hull	2022
Boat type	Power
Category	Motor Yacht Boats
Hull type	Other
Hull material	Other

Name	Value
Length overall	18.8 m
Draft maximum	1.22 m

Name	Value
Engine A
Engine B

2022 Outer Reef Yachts 620

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

18.8 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios
