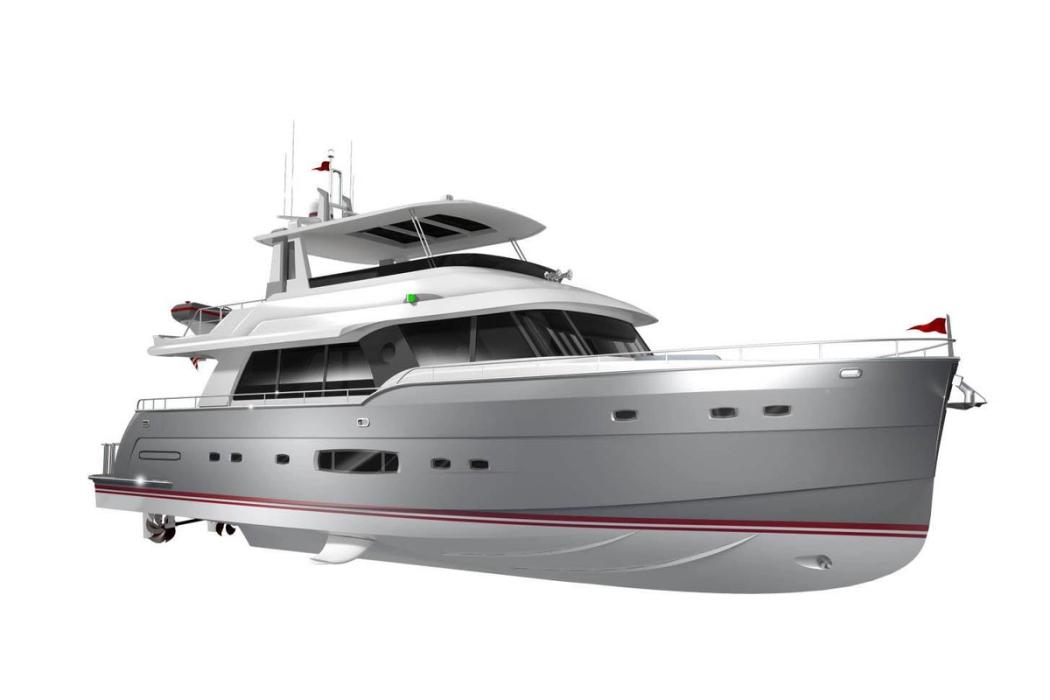

The attractive and efficient plumb bow hull design and chic styling elements are impeccably expressed within the 720 Trident. The 720 by Outer Reef Trident, Inc continues to impress while delivering quality, long range and memorable cruising.


Hull Construction

Vinylester resin infused FRP hull with PVC core sandwich construction
Vinylester barrier lamination for osmosis protection
Molded stringer/grid system
Hull Awlgrip paint system and superstructure to be gel coat
Two (2) coats of black antifouling paint over five (5) coats of epoxy primer below waterline
Integrally molded rub rails with stainless steel capping
Full length keel extends below running gear
CE-approved stainless steel portlights
Boat construction from only 3 major molds
PVC cored construction with Awlgrip paint system
All deck and hull area hardware attachments are finished with solid lamination – no coring
Bilge area finished smooth and coated with bright white epoxy paint
Windows with 3/8" tempered safety glass in salon and ½" tempered safety glass in pilothouse
WheelHouse™ Technologies, Inc. Marine Maintenance System

Mechanical/Plumbing
MECHANICAL

Copper bonding system to all underwater fittings with zinc anodes
DNV approved Pex fresh water lines
Headhunter 24v DC fresh water pump with accumulator tank
Three (3) 24v DC automatic shower sump systems with external pump
Accessible wiring raceway throughout
Central ventilation system for heads and bilge areas&nbsp;

TANKAGE

One (1) food-grade plastic holding tank with a max capacity of 200 US gallons (757 lts) with two (2) diaphragm/discharge pumps. One (1) is wired and plumbed for backup redundancy
One (1) food-grade plastic fresh water tank with a max capacity of 300 US gallons (1135 lts)
Two (2) food-grade plastic gray water tank with a max capacity of 100 US gallons each, total 200 US gallons (757 lts)
Three (3) aluminum fuel tanks with a total capacity of 1400 US gallons (5300 lts) with crevice corrosion protection
Inspection and cleaning ports on all tanks

LAZARETTE/UTILITY

Engineered flooring over FRP soles
Hull interior finished with white gloss polyurethane paint
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU)
Overhead LED lighting
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Work bench with storage under
Miscellaneous electric panels
Stairs up to aft deck
Watertight door to engine room
CE-approved portlight(s) with removable insect screen
Whisper Wall or equal stretched overhead panels

ENGINE ROOM

Acoustically insulated stand-up engine room lined with sound absorbing material to highest standard.
Edura coin dot flooring over removable panels
Standard twin Cat 8.7 641bhp with conventional V-drive system
Optional twin Cat 12.9 838 to 985BHP available
One (1) Onan QD 27.5kw generator 60Hz (20kw 50hz for AU-EU)
Fiberglass drip pans under engines
Chilled air conditioning system
Ball-valve bronze seacocks on all through-hulls below waterline
Oil change pump for engines and generator
Two (2) Charles 50amp isolation transformers
2.5kw inverter/charger (24v DC to 115v AC 60hz) (3kw inverter/charger (24v DC to 220v AC 50hz for AU-EU)
Two (2) Racor 1000 MA single fuel filters for main engines
One (1) Racor 1000 MA single fuel filters for generator
Fuel polishing system
Fuel management system
Fireboy fire suppression system including both intake and outlet air shutdown system with aluminum louvers
Two (2) automatic bilge pumps 24v DC
Fire system and bilge high-water alarm system with warning panel
Fresh water hose bibb
AGM (Absorbed Glass Matt) batteries in FRP boxes:

Two (2) engine banks with two (2) 8D batteries for each bank
One (1) house bank with four (4) 8D batteries with a total 510 amp-hours (24VDC)
One (1) generator bank with one (1) battery
One (1) 24v and one (1) 12v battery charger

Two (2) battery isolators
One (1) 20 gallon water heater&nbsp;
Additional 20 gallon water heater with heat exchanger going through the generator
Two (2) 24v DC blowers
Two (2) 110v AC GFI outlets (220v 50hz for AU-EU) with water proof covers
316 stainless steel safety rails around engines
Two watertight bulkheads
Watertight aluminum aft engine room door

Exterior/Decks
AFT DECK AREA

Aft deck with molded white non-skid surface
FRP built-in swim platform
Stainless steel removable swim ladder on swim platform
2" 316 stainless steel removable safety rails on swim platform
Stairway built-in to port and starboard side from swim platform to aft deck with stainless steel tube gate doors
Bar port side with molded in sink, stainless steel faucet, under-counter refrigerator
&amp; storage and solid surface top
Stairs up to boat deck starboard side with watertight hatchway in lower treads down to crew and utility areas below decks
Wrap around dinette seat with Sunbrella® furniture fabric and cover
Table with solid surface top and polished stainless steel pedestal base
Glass and powder-coated stainless steel swing door to salon
FRP weather tight door on transom
Transom shower in recessed box with hot and cold water supply
Fresh water wash down outlet
Side gates port and starboard
Two (2) 50 amp shorepower inlet with single Glendinning cable master for 110v/220vv 60hz (32 amp 220v 50hz for AU-EU)
One (1) 110v AC GFI outlet (220v 50hz for AU-EU)
316 Stainless steel heavy duty cleats secured to stainless steel backing plates inside bulwarks with fairleads in transom corners
Deck scuppers piped out through transom at boot stripe
316 Stainless steel handrail to and from aft deck
Standard hydraulic passerelle and twin capstans (Standard for EU only, option available for US and AU)

SIDE DECKS

Molded with white non-skid surface
Weathertight door opening into pilothouse on port side only
House side fixed windows with tinted tempered glass
One set of double horned spring-line hawsers per side in 316 SS
Fuel fill fittings for tanks recessed into house side and starboard locker
316 stainless steel overhead safety rails
Freeing ports both sides

FORE DECK

Foredeck with white non-skid surface
Windows port and starboard on front of foredeck trunk
316 stainless steel rails on bulwarks and coach house per designer details
316 stainless steel stanchions to support handrail
Deck lockers within coach house sides forward finished in white epoxy paint with locking 316 stainless steel latches
Seating area with table using Sunbrella® furniture fabric and includes cover
316 stainless steel anchor chute/roller at bow
90lb stainless steel Ultra anchor with 300' long 3/8" high test chain
Maxwell VWC-3500c (24v) vertical windlass with foot switches and remote controls for dual stations
One set of 316 stainless steel cleats per side placed on anchor plinth
One set of 316 stainless steel mooring bollards on bow deck each side, aft of 316 stainless steel hawsers
Custom bow flag staff
Watertight bow anchor locker hatch(s) flush fit to deck providing access to fully finished anchor locker with hull side chafe protection, bitter end fitting and overboard drains at boot with reverse fit scoops
Salt water wash down pump with outlet
Fresh water wash down outlet
Salt water and fresh water 316 stainless steel faucets inside foredeck lockers
Deck drains plumbed to boot-stripe to prevent black streaks

FLYBRIDGE

Wide beam deck with white non-skid surface and ample storage space
Venturi windscreen with 316 stainless steel rails
Molded FRP steering console with engine controls
Electronics console on centerline with storage outboard and under
4" magnetic compass
Teleflex (or equal) hynautic steering
316 stainless steel destroyer steering wheel
Two (2) custom helm seats with powder coated base and naugahyde fabric
Fire system repeater alarm
One (1) L-shaped settee and one (1) U-shaped settee with Sunbrella® furniture fabric for cushions and one (1) solid surface top dining table on twin stainless steel pedestals, painted out storage underneath
FRP cabinets to port and starboard aft with Electric grill, refrigerator with ice, sink and storage shelving and drawers. Solid Surface countertop.
Five (5) Aquasignal navigation lights in accordance with appropriate collision regulations
Buell dual trumpet air horn with compressor
Two (2) 24v to 12v DC-DC converters with 12v battery back-up system
FRP radar arch &amp; hardtop with manual moon roof opening
ACR 24v DC searchlight with dual station controls
Sliding hatch and stairs down to pilothouse
Four (4) 110v AC GFI outlets (220v 50hz for AU-EU)
One (1) 12v DC outlet (220v 50hz for AU-EU)

BOAT DECK

Deck with white non-skid surface
Tender cradle with additional deck tie down pads
1000 LB capacity aluminum painted davit with 3 way hydraulic control with rotating base, lift, pendant switch and a fixed arm

Interior/Accomodations
INTERIOR DECOR

Interior décor is offered in three (3) different color palettes from an Outer Reef Trident Inc standard selection

SALON

Custom sliding door entrance from aft deck
Fixed windows in house sides with medium 3/8" tinted tempered safety glass
Valance over windows with LED rope lighting
Vinyl headliner
Built-in L-shaped settee (galley forward version)
Built-in U-shaped &amp; L-shaped settee(s) (galley aft version)
One (1) free standing fixed coffee table
Entertainment center cabinet with TV lift
One (1) built-in end table
Air conditioning control panel
Cabinetry and lockers
Four (4) 110v AC outlets (220v AC for AU-EU)
One (1) USB outlet
One (1) TV outlet&nbsp;
Pre manufactured wood flooring
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers&nbsp;

GALLEY

Corian or granite countertops with stainless steel under mount sinks
Drawer for soap and sponges in front of the sink
Chrome Grohe Europlus II faucet with pull out spray
Cabinets and cabinet doors with chrome push-button locks
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Two (2) 110v AC GFI outlets (220v AC GF for AU-EU)
Pre-manufactured wood flooring

APPLIANCES

VITRIFRIGO DW180 INOX RFX 12/24V drawer (fridge/fridge) &amp; VITRIFRIGO DW180 BTX 12/24V INOX drawer (freezer/freezer) units
Bosch fully integrated dishwasher (18" / 45cm)
Foster induction cooktop /hob (36" / 90cm)
Bosch compact oven/microwave (24" / 60cm)
Electrolux exhaust hood (24" / 60cm) **Aft galley configuration only
GE garbage disposal
Samsung washer and dryer (forward in lower hallway)

PILOTHOUSE

Settee on raised platform
Wood dining table with Polished stainless steel legs
One (1) chart light
LED red and white bridge lights
Two (2) 110v AC outlets (220v AC GFI for AU-EU)
One (1) USB outlet
One (1) 12v DC outlet
Two (2) custom helm seats installed on cabinet base with storage underneath
Custom wood steering wheel at pilothouse helm
Engine display screens
Main electrical distribution panels with gauges and circuit breakers for AC and DC
Alarm and advisory panel
Transom doors on AC, DC and advisory panels
Electronic controls
4" magnetic compass
Chart flat and storage port side
Two (2) stainless steel dual speed self-parking windshield wipers with wash down system
½" clear tempered glass in forward facing windshields
Vinyl headliner
Air conditioning control panel
Generator digital control panel
24v DC to 12v DC converter
Windlass up/down switch and control circuit breaker
Bilge pump control on advisory panel
Equipment running advisory panel
Stairway to flybridge
Weathertight door opening out to port side
Curved stairway leading to accommodations
Pre-manufactured wood flooring&nbsp;

LOWER HALLWAY

Curved stairway from pilothouse
Bulkhead finished with wall covering
Stackable washer and dryer
Access doors to staterooms
Carpeted floor

FULL BEAM MIDSHIP MASTER STATEROOM

Tapered king size berth
Drawer storage under the berth
LED rope lighting under the bed and at valance
One (1) walk in hanging locker with door
Automatic interior lights in lockers
Drawers with center guides and stops
Door stops and holders
Bulkheads with wall covering and /or veneer
Two (2) CE-approved portlights with removable insect screen
Four (4) 110v AC outlets (220v AC for AU-EU)
One (1) TV outlet
One (1) USB outlet
Air conditioning control panel
Nightstand tables with two drawers each
Dressers port side and dresser and lounge to starboard
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles &amp; hardware on cabinetry
Carpeted floor

MASTER HEAD (ENSUITE)

Ensuite head with shower
CE-approved portlight with removable insect screen in shower
Custom frosted tempered glass shower door with 24" towel bar
Molded white tempered glass shower with stone overlay flooring
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
Ventilator fan in shower
Corian or granite countertop with white Kohler under-mount sink(s)
Chrome Grohe center-set single lever faucets at sinks
Mirrors two sides
Storage cabinets under sinks
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Pre-manufactured wood flooring

VIP STATEROOM FORWARD

Tapered queen-size berth
Storage drawers under the berth
Two steps on each side of the berth for easy access
LED rope lighting at valance
Four (4) CE-approved portlights with removable insect screen
Escape hatch to foredeck
One (1) hanging locker
Automatic interior lights in lockers
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Bulkheads with wallpaper and veneer
Two (2) 110v AC outlets (220v AC for AU-EU)
One (1) USB outlet
Air conditioning control panel
Carpeted floor

VIP HEAD (ENSUITE)

Ensuite head with shower
CE-approved portlight with removable insect screen
Custom frosted tempered glass shower door with 24" towel bar
Molded white tempered glass shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
Ventilator fan in shower
Corian or granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Mirror
Storage cabinet under sink
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing
One (1) 110v AC GFI outlet (220v AC GFI for AU-EU)
Pre-manufactured wood flooring

GUEST STATEROOM PORT

CE-approved portlight with removable insect screen
Two (2) bunk berths with storage drawers underneath the lower one
LED rope lighting at valance
One (1) hanging locker
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Automatic interior light in locker
Door stops and holders
Bulkheads with wallpaper and veneer
One (1) 110v AC outlet (220v AC for AU-EU)
One (1) USB outlet
Air conditioning control panel
Carpeted floor

GUEST HEAD (ENSUITE)

Head with shower
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Corian or granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Mirror with medicine chest
Storage cabinet under sink
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing&nbsp;

GUEST STATEROOM STBD

CE-approved portlight with removable insect screen
Two (2) single berths with storage drawers underneath the lower one
LED rope lighting at valance
One (1) hanging locker
Satin varnish with available hi-gloss upgrade on interior veneers in combination with vinyl wall coverings
Drawers with full extension guides and push button latches
Chrome door handles on all interior lockers
Automatic interior light in locker
Door stops and holders
Bulkheads with wallpaper and veneer
One (1) 110v AC outlet (220v AC for AU-EU)
One (1) USB outlet
Air conditioning control panel
Carpeted floor

GUEST HEAD (ENSUITE &amp; HALLWAY ACCESS AS DAYHEAD)

Head with shower
Molded white FRP shower
Grohe Relaxa Plus chrome pulsator hand shower with hose and soap dish
24v DC ventilator blower
Corian or granite countertop with white Kohler under-mount sink
Chrome Grohe center-set single lever faucet at sink
Mirror with medicine chest
Storage cabinet under sink
Dometic 24v electric white toilet with sanitary hose for all discharge plumbing

Cruising/Safety Package

Six (6) 15" x 41" Polyform F-series black fenders
Twelve (12) 15' x ½" black fender lines
Four (4) 3/4" x 35' double-braid nylon black dock lines
Two (2) 3/4" x 50' double-braid nylon black dock lines
Twelve (12) Safeguard type I orange life vests for adults over 90 lbs
Six (6) Kiddie Mariner 2 ¾ lb M10 fire extinguishers
One (1) Bernard oil discharge placard (US Model Only)
One (1) Bernard waste discharge placard (US Model Only)
Two (2) Jim-Buoy 24" white ring buoys
Four (4) Perko chrome/brass 4-ring buoy holders
One (1) Orion alert/locate flare kit
One (1) Orion circumnavigator first aid kit
One (1) Orion safety blaster horn

Other
LIGHTING

All interior and exterior LED lighting as per the standard lighting plan

STANDARD AUDIOVISUAL PACKAGE
SALON VIDEO:

Samsung 46" 3D 1080p LED-LCD TV - 16:9 - HDTV 1080p multi standard TV
Apple TV

SALON AUDIO:

Samsung sound bar

SALON CONTROL:

Universal remote MX-3000

SALON OTHER:

Furman F1000 UPS/power conditioner
Heavy duty step down transformer 220v to 110v continuous&nbsp;

GALLEY VIDEO:

Samsung 22" HD LED multisystem 110/220v

AFT DECK AUDIO:

J.L. Audio M770-CCX cockpit co-axial speakers, pair, white, classic-grill

AFT DECK CONTROL:

Universal MXW-920 water resistant remote control

FLYBRIDGE AUDIO:

J.L. Audio M770-CCX cockpit co-axial speakers, pair, white, classic-grill

FLYBRIDGE CONTROL:

Universal MXW-920 water resistant remote control

MASTER STATEROOM VIDEO:

Samsung 40" HD 1080p LED-LCD TV world-wide system 110/220V
Apple TV

MASTER STATEROOM CONTROL:

Universal remote MX-3000

VIP STATEROOM VIDEO:

Samsung 22" HD LED multisystem 110/220v&nbsp;

VIP STATEROOM CONTROL:&nbsp;

Universal remote MX-3000

PORT STATEROOM VIDEO:

Samsung 22" HD LED multisystem 110/220v

STANDARD NAVIGATION PACKAGE (SIMRAD)
FLYBRIDGE EQUIPMENT:

Two (2) NSS16" EVO2 SIMRAD combo displays including GPS
RS 90 VHF 2nd handset and speakers
1.8m Galaxy broadband antenna
NSPL-400 antenna splitter
Hailer horn
AutoPilot

PILOTHOUSE EQUIPMENT:

Two (2) NSS16" EVO2 SIMRAD combo displays including GPS
TX065 4' 6kW, SIMRAD 64 nm open array digital radar
Autopilot
RS 90 SIMRAD Black Box VHF AIS/RX/PA (includes horn)
C-Zone and network links&nbsp;

OTHER NAVIGATION EQUIPMENT:

Sonar Hub Module SIMRAD Broadband Sonar
NAIS-400 AIS CLASS B RX/TX

CAMERAS:

Iris 700 TVL 2.8 mm wide angle mini ball IR camera (engine room)
Iris 620 TVL clam shell static camera (aft deck)
Samsung 19" LED monitor multi system w110/220 input

WIRELESS CELL AMP SYSTEM:

Wilson Electronics 801280 75dB 850Mhz or 1900 Mh celullar amplifier

ADDITIONAL ITEMS:

Shakespeare AM/FM VHF band separator
Off Air TV antenna

INCLUDED C-ZONE MONITORING SYSTEM

Shore and gen power inputs current and voltage
DC inverter charger current and voltage
House and engine batteries current and capacity
All tank levels including fuel, black, grey and fresh water

MONITORED &amp; SWITCHED OUTPUTS ON/OFF

All lighting controls
Pumps throughout
Glendinning controls
Horn
Two (2) engine room fans and more


Show More…
Show Less…


Fiberglass

<p>Maker - Compare boat manufacturers on TheBoatDB and find the best boat and brand for you. You can look up boats by maker and filter your search to save some time. Check out the various models they have on our database and explore in detail the shape, performance, look, interior, and more specifications and features.</p>

Other

7585039_20200910130558274_1_XLARGE

Outer Reef Yachts

Euro

<p>Powerboats are vessels with an onboard or outboard engine that powers them and allows them to gain speed and move on the water in a way that feels like it is just sliding on the surface. As such, they are also known as speedboats. Learn more about powerboats and their speed on TheBoatDB. Pick a model and check out its maximum velocity, <a href="https://theboatdb.com/maker">manufacturer</a>, whether it is an outboard motorboat or inboard one, and other features and specifications on our online database. Check out all types of powerboats and compare side by side the ones that pique your interest the most.</p>

Name	Value
Maker	Outer Reef Yachts
Maker website	https://www.outerreefyachts.com
Model	720
First built hull	2022
Boat type	Power
Category	Motor Yacht Boats
Hull type	Other
Hull material	Other

Name	Value
Length overall	21.92 m
Draft maximum	1.37 m

Name	Value
Engine A
Engine B

2022 Outer Reef Yachts 720

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

21.92 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios
