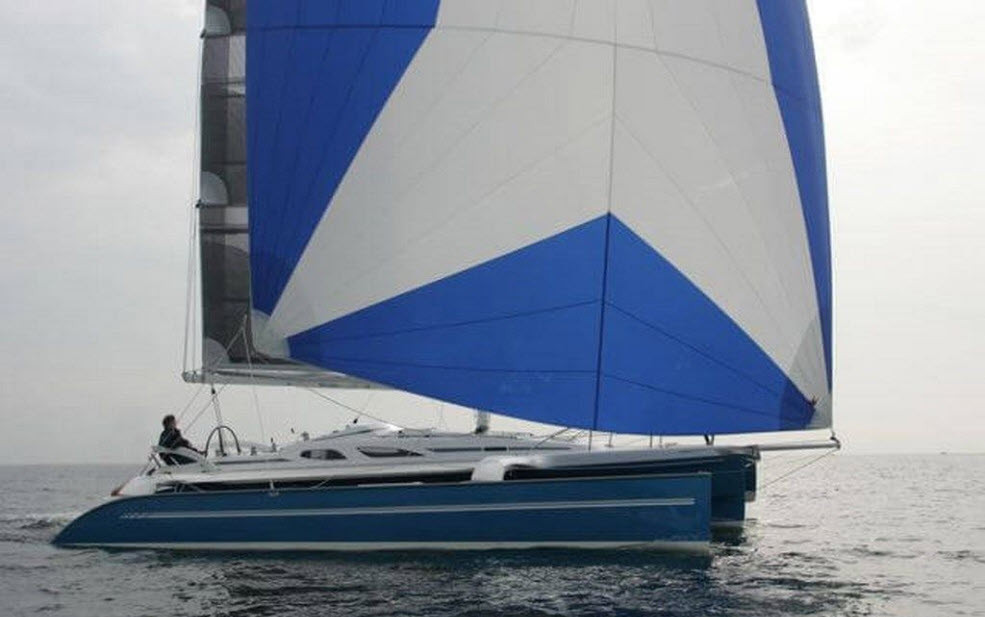

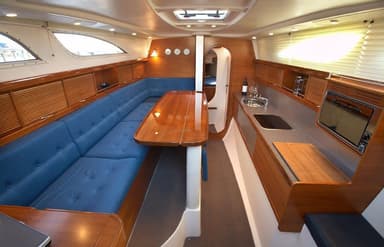

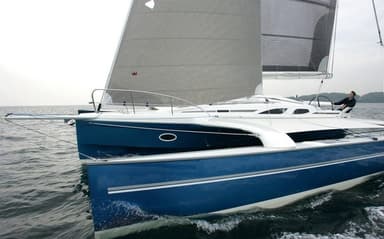

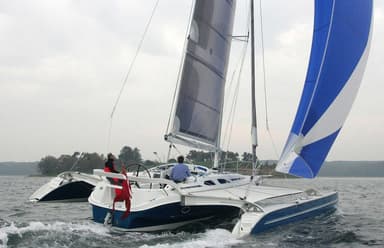

2007 Quorning Boats Dragonfly 35 - Touring
Preview

Boat Overview

  • Type
    sail
  • Maker
    Quorning Boats
  • Hull type
    trimaran
  • Hull Material
    fiberglass
  • Category
    -
  • Boat length (LOA)
    10.67 m

Discover the Gold

Hide ads, help pay for servers & development and unlock Gold only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerQuorning Boats
Maker websitehttp://dragonfly.dk/
ModelDragonfly 35 - Touring
First built hull2007
Last built hull-
VersionTouring
Price306000 EUR
Boat typesail
Category-
Hull typetrimaran
Hull materialfiberglass
Cabins-
Births-
Heads-
General
NameValue
Top speed-
Cruising speed-
Mast height18.01 m
Length overall10.67 m
Length at waterline10.52 m
Beam overall7.96 m
Beam center-line-
Beam hull-
Headroom2.01 m
Bridgedeck clearance-
Nominal bridgedeck clearance-
Draft maximum1.89 m
Draft minimum-
Displacement5399.09 kg
Tonnage Gross-
Tonnage Net-
Ballast weight-
Ballast type-
Helm1 tiller (helm wheel in option)
Rudder1 transom hung rudder (main hull)
Hull appendages
Hull appendages A-
CockpitClosed aft cockpit
Unsinkable-
Trailerable-
CE classification
CE classification A-
CE classification B-
CE classification C-
CE classification D-
Designer
NameValue
Naval architect
Name/StudioJens Quorning ; Steen Olsen
Websitehttp://olsendesign.dk/
Exterior designer
Name/Studio-
Website-
Interior designer
Name/Studio-
Website-
Rig & Sails
NameValue
Riggingsloop
Rotating spars
Mast59.1
SparsMast in Carbon fiber and boom in Aluminum
Standing rigging-
Number of spreaders2
Spreaders angleSwept-back (diamond)
Upwind sail area83.98 sq.m
Downwind sail area149.02 sq.m
Mainsail
Mainsail A581.00
Headsail
Headsail A-
Spinnaker
Spinnaker A1023.00
Spinnaker A538.00
Engine
NameValue
Engine A
Maker-
Website-
Model-
TypeInboard engine ; Diesel
Drive-
Fuel-
Power30
Power Typehp
Engine B
Maker-
Website-
Model-
Type-
Drive-
Fuel-
Power-
Power Typehp
Storage
NameValue
Fuel tank
Fuel tank A79.86 liter
Water tank
Water tank A140.05 liter
Holding tank
Holding tank A60.18 liter
Water heater
Water heater A-

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 17.84
Upwind SA to Displacement27.75
Downwind SA to Displacement49.24
Hull Displacement Speed 7.87
Displacement to Length (D/L) 129.43
Ballast to Displacement (B/D) -
Capsize Screening Formula (CSF) 4.57
Stability Speed-
Kelsall Stability Index (KSI)-
