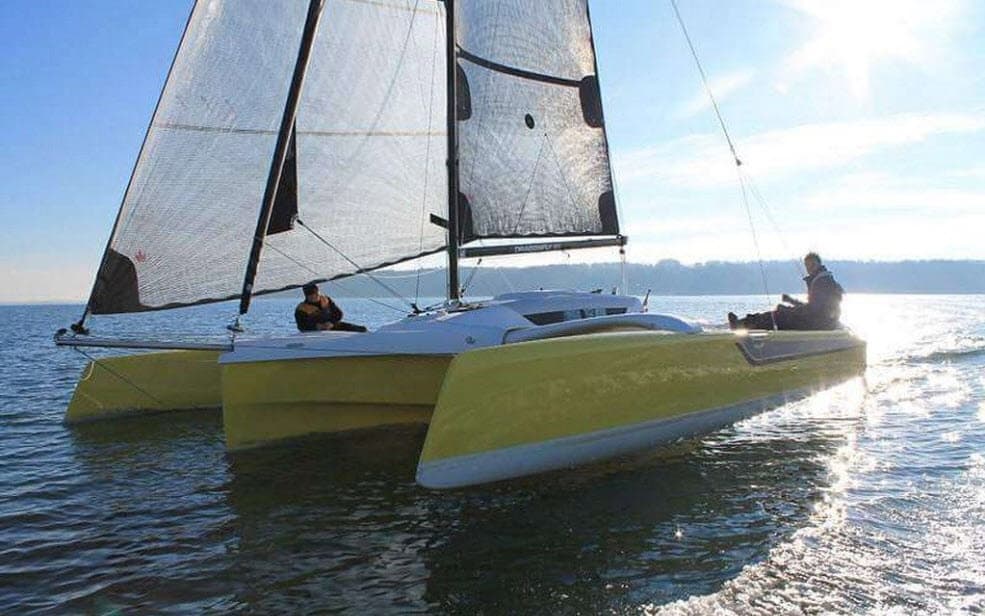

2015 Dragonfly Dragonfly 25 - Sport

1798

Report error

2015 Dragonfly Dragonfly 25 - Sport

No gallery images

Boat Overview

Type
Sail
Maker
Dragonfly
Hull type
Trimaran
Hull Material
Fiberglass
Category
Trimaran Boats
Boat length (LOA)
7.65 m
See all details

Overview

Performance & Ratios

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Hide empty fields

Main

Name	Value
Maker	Dragonfly
Maker website	https://www.dragonfly.dk
Model	Dragonfly 25 - Sport
First built hull	2015
Version	Sport
Price	87,000 €
Boat type	Sail
Category	Trimaran Boats
Hull type	Trimaran
Hull material	Trimaran

General

Name	Value
Length overall	7.65 m
Length at waterline	7.53 m
Beam overall	5.79 m
Headroom	1.25 m
Draft maximum	1.25 m
Displacement	1,050.07 kg
Helm	2 tillers
Rudder	2 rudders (on amas)
Cockpit	Closed aft cockpit
Trailerable

Designer

Name	Value
Naval architect
Name/Studio	Jens Quorning
Website	http://www.trimarans.com/

Rig & Sails

Name	Value
Rotating spars
Spars	Mast and boom in Carbon fiber
Standing rigging	Continuous
Number of spreaders	1
Spreaders angle	Swept-back (diamond)
Upwind sail area	39.02 sq.m
Downwind sail area	83.98 sq.m
Mainsail A	312.00
Spinnaker A	592.00
Spinnaker A	108.00

Engine

Name	Value
Engine A
Type	Outboard ; Gas
Engine B

Storage

Name	Value
No data

Performance & Ratios

Hide empty fields

Detail

Name	Value
Sail Area to Displacement (SA/D)	28.53
Upwind SA to Displacement	38.41
Downwind SA to Displacement	82.67
Hull Displacement Speed	6.66
Displacement to Length (D/L)	68.58
Capsize Screening Formula (CSF)	5.75
