Name	Value
Maker	Dragonfly
Maker website	https://www.dragonfly.dk
Model	Dragonfly 28 - Sport
First built hull	2008
Version	Sport
Price	153,000 €
Boat type	Sail
Category	Trimaran Boats
Hull type	Trimaran
Hull material	Trimaran

Name	Value
Mast height	15.24 m
Length overall	9.08 m
Length at waterline	8.6 m
Beam overall	6.52 m
Headroom	1.86 m
Draft maximum	1.74 m
Displacement	2,624.94 kg
Helm	1 tiller
Rudder	1 transom hung rudder (main hull)
Cockpit	Closed aft cockpit
Unsinkable
Trailerable

Name	Value
Naval architect
Name/Studio	Jens Quorning ; Steen Olsen
Website	http://olsendesign.dk/

Name	Value
Rotating spars
Mast	50
Spars	Mast in Carbon fiber and boom in Aluminum
Number of spreaders	2
Spreaders angle	Swept-back (diamond)
Upwind sail area	62.99 sq.m
Downwind sail area	121.98 sq.m
Mainsail A	452.00
Spinnaker A	861.00
Spinnaker A	226.00
Spinnaker A	484.00

Name	Value
Engine A
Power	15 HP
Type	Outboard ; Gas
Engine B

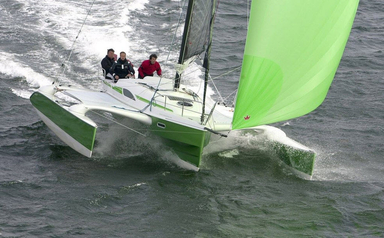

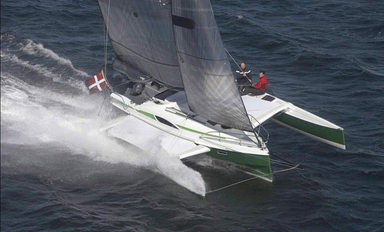

2008 Dragonfly Dragonfly 28 - Sport

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

9.08 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.08
Upwind SA to Displacement	33.66
Downwind SA to Displacement	65.19
Hull Displacement Speed	0.08
Displacement to Length (D/L)	7.12
Capsize Screening Formula (CSF)	4.77
