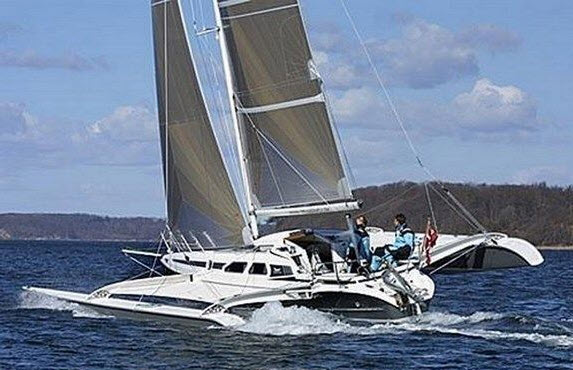

1996 Quorning Boats Dragonfly 920 - Extreme
Preview

Boat Overview

  • Type
    sail
  • Maker
    Quorning Boats
  • Hull type
    trimaran
  • Hull Material
    fiberglass
  • Category
    -
  • Boat length (LOA)
    9.20 m

Discover the Gold

Hide ads, help pay for servers & development and unlock Gold only features like, sharing, advanced dashboard, extra storage space & more!

Try Gold for Free

Specs

Main
NameValue
MakerQuorning Boats
Maker websitehttp://dragonfly.dk/
ModelDragonfly 920 - Extreme
First built hull1996
VersionExtreme
Boat typesail
Hull typetrimaran
Hull materialfiberglass
General
NameValue
Mast height15.88 m
Length overall9.20 m
Length at waterline8.78 m
Beam overall7.83 m
Headroom1.55 m
Draft maximum1.55 m
Displacement2599.55 kg
Helm1 tiller
Rudder1 transom hung rudder (main hull)
CockpitClosed aft cockpit
Unsinkable
Trailerable
Designer
NameValue
Name/StudioBørge Quorning ; Jens Quorning
Websitehttp://www.trimarans.com/
Rig & Sails
NameValue
Riggingfractional_rig_sloop
Mast52.1
SparsMast and boom in Carbon fiber
Number of spreaders2
Spreaders angleSwept-back (diamond)
Upwind sail area69.03 sq.m
Downwind sail area119.01 sq.m
Mainsail A474.00
Spinnaker A807.00
Spinnaker A452.00
Engine
NameValue
TypeOutboard engine ; Gas
Power15 HP
Storage
NameValue
No Data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 23.69
Upwind SA to Displacement37.13
Downwind SA to Displacement64.01
Hull Displacement Speed 7.19
Displacement to Length (D/L) 107.12
Capsize Screening Formula (CSF) 5.74
