Name	Value
Maker	Seascape Edition
Maker website	https://www.seascape-edition.com
Model	Seascape 18 Shoal draft
First built hull	2006
Version	Shoal draft
Price	20,900 €
Boat type	Sail
Category	Racer Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Length overall	5.49 m
Beam overall	2.16 m
Draft maximum	1.13 m
Displacement	499.86 kg
Ballast weight	125.19 kg
Ballast type	Cast iron
Helm	1 tiller
Rudder	2 transom hung rudders
Cockpit	Open aft cockpit
Unsinkable
Trailerable

Name	Value
Naval architect
Name/Studio	Samuel Manuard
Website	http://sam.manuard.free.fr/

Name	Value
Spars	Mast and boom in Carbon fiber
Standing rigging	1x19 strand wire
Upwind sail area	23.69 sq.m
Downwind sail area	46.54 sq.m
Mainsail A	156.00
Spinnaker A	344.00

Name	Value
Engine A
Type	Outboard Engine
Engine B

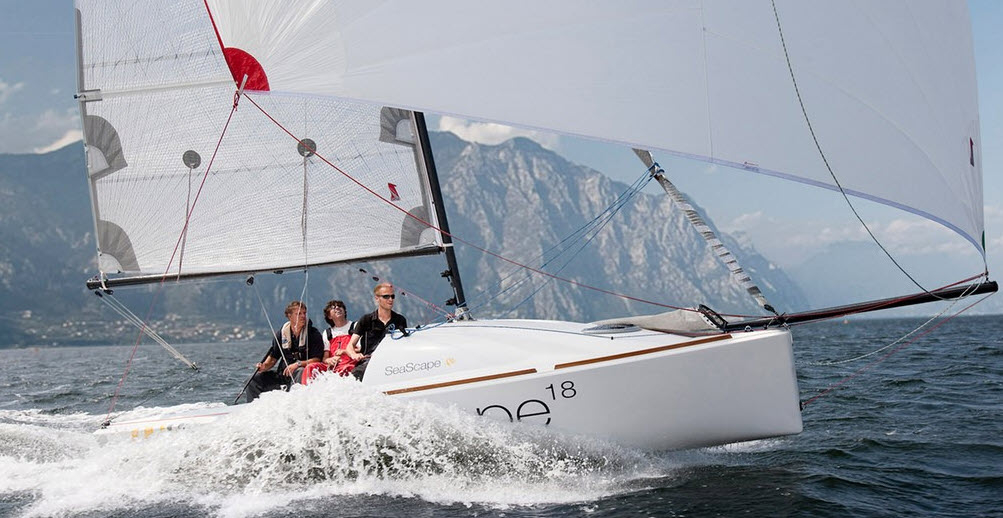

2006 Seascape Edition Seascape 18 Shoal draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

5.49 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.09
Upwind SA to Displacement	38.25
Downwind SA to Displacement	75.15
Hull Displacement Speed	0.09
Ballast to Displacement (B/D)	0.25
Capsize Screening Formula (CSF)	2.75
