Boat Overview
Type
Maker
Hull type
Hull Material
Fiberglass
Category
-
Boat length (LOA)
10.52 m
Specs
Main
| Maker | Pogo Structure |
| Maker website | https://www.pogostructures.com |

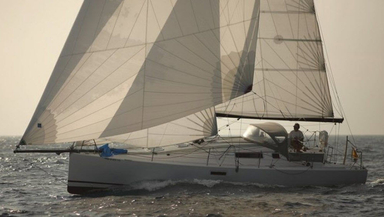

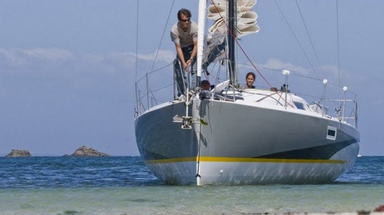

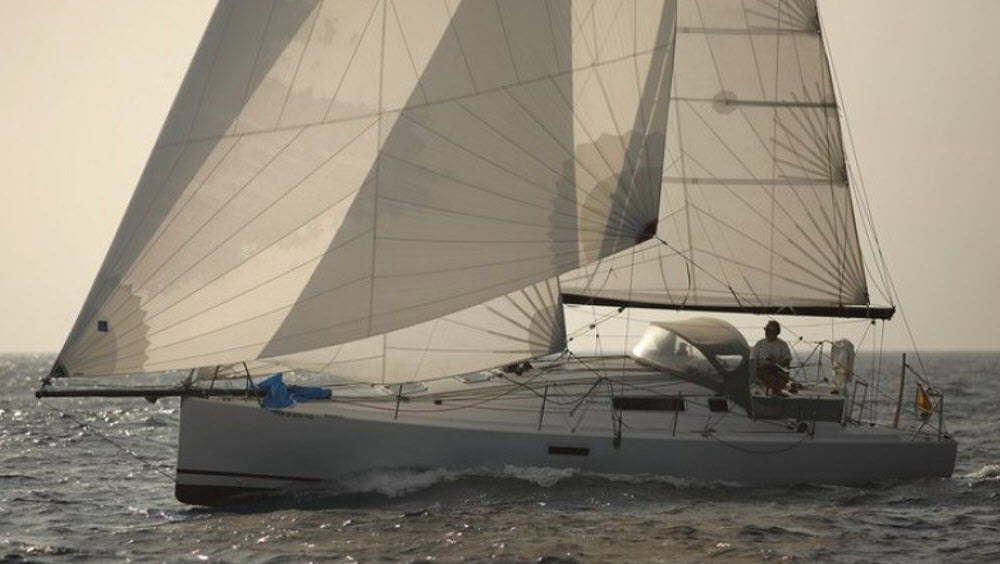

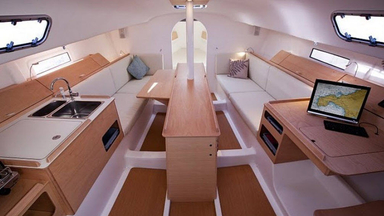

| Model | Pogo 10.50 Swing keel |
| First built hull | 2007 |
| Version | Swing keel |
| Boat type | Sail |
| Hull type | Monohull |
| Hull material | Fiberglass |
General
| Top speed | 12.65 kmh |
| Length overall | 10.52 m |
| Length at waterline | 10.52 m |
| Beam overall | 3.69 m |
| Beam hull | 1.89 m |
| Draft maximum | 2.8 m |
| Displacement | 3,600.16 kg |
| Ballast weight | 1,099.96 kg |
| Ballast type | Glass fiber/vinylester (infusion) fin with lead bulb |
| Helm | 2 tillers |
| Rudder | 2 spade rudders |
| Cockpit | Open aft cockpit |
| Unsinkable |
Designer
| Naval architect | |
| Name/Studio | Finot Conq Architectes |
| Website | http://www.finot-conq.com |
Rig & Sails
| Spars | Mast in Carbon fiber and boom in Aluminum |
| Standing rigging | 1x19 strand wire |
| Number of spreaders | 2 |
| Spreaders angle | Swept-back |
| Upwind sail area | 70.98 sq.m |
| Downwind sail area | 158.96 sq.m |
Engine
| Engine A | |
| Engine B | |
| Power | 20 HP |
| Type | inboard |
Storage
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.08 |
| Upwind SA to Displacement | 30.73 |
| Downwind SA to Displacement | 68.82 |
| Hull Displacement Speed | 0.08 |
| Displacement to Length (D/L) | 7.87 |
| Ballast to Displacement (B/D) | 0.31 |
| Capsize Screening Formula (CSF) | 2.43 |
