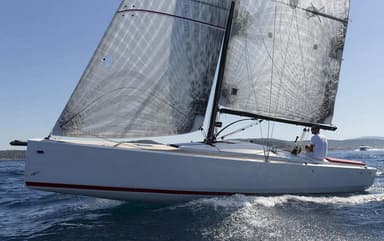

Boat Overview
Type
Maker
Hull type
Hull Material
Fiberglass
Category
-
Boat length (LOA)
9.02 m
Specs
Main
| Maker | Wauquiez |
| Maker website | https://www.wauquiez.com |
| Model | Optio Fin keel |
| First built hull | 2014 |
| Version | Fin keel |
| Price | 94,500 € |
| Boat type | Sail |
| Hull type | Monohull |
| Hull material | Fiberglass |
General
| Top speed | 11.44 kmh |
| Mast height | 13.23 m |
| Length overall | 9.02 m |
| Length at waterline | 8.56 m |
| Beam overall | 2.56 m |
| Draft maximum | 2.19 m |
| Displacement | 1,999.89 kg |
| Ballast weight | 899.93 kg |
| Ballast type | Cast iron |
| Helm | 1 tiller |
| Rudder | 2 spade rudders |
| Cockpit | Open aft cockpit |
| Trailerable |
Designer
| Naval architect | |
| Name/Studio | Berret-Racoupeau Yacht Design |
| Website | http://www.berret-racoupeau.com/ |
Rig & Sails
| Mast | 43.4 |
| Spars | Mast and boom in Aluminum |
| Standing rigging | Single-strand (ROD) discontinuous |
| Number of spreaders | 2 |
| Spreaders angle | Swept-back |
| Upwind sail area | 43.48 sq.m |
| Downwind sail area | 96.53 sq.m |
Engine
| Engine A | |
| Engine B | |
| Power | 14 HP |
| Type | inboard |
Storage
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.07 |
| Upwind SA to Displacement | 27.86 |
| Downwind SA to Displacement | 61.84 |
| Hull Displacement Speed | 0.07 |
| Displacement to Length (D/L) | 7.1 |
| Ballast to Displacement (B/D) | 0.45 |
| Capsize Screening Formula (CSF) | 2.05 |
