Name	Value
Maker	Wauquiez
Maker website	https://www.wauquiez.com
Model	Pilot Saloon 58 Deep draft
First built hull	2017
Version	Deep draft
Price	695,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Fiberglass

Name	Value
Top speed	15.43 kmh
Mast height	17.71 m
Length overall	15.61 m
Length at waterline	4.94 m
Headroom	2.04 m
Draft maximum	2.5 m
Displacement	21,499.81 kg
Ballast weight	6,900.04 kg
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Open aft cockpit

Name	Value
Naval architect
Name/Studio	Berret-Racoupeau Yacht Design
Website	http://www.berret-racoupeau.com/

Name	Value
Mast	58.1
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire discontinuous
Number of spreaders	3
Spreaders angle	Swept-back
Upwind sail area	133.04 sq.m
Downwind sail area	265.98 sq.m
Mainsail A	850.00
Mainsail B	581.00
Spinnaker A	2013.00
Spinnaker A	1195.00

Name	Value
Engine A
Power	150 HP
Type	Inboard engine ; Diesel
Engine B

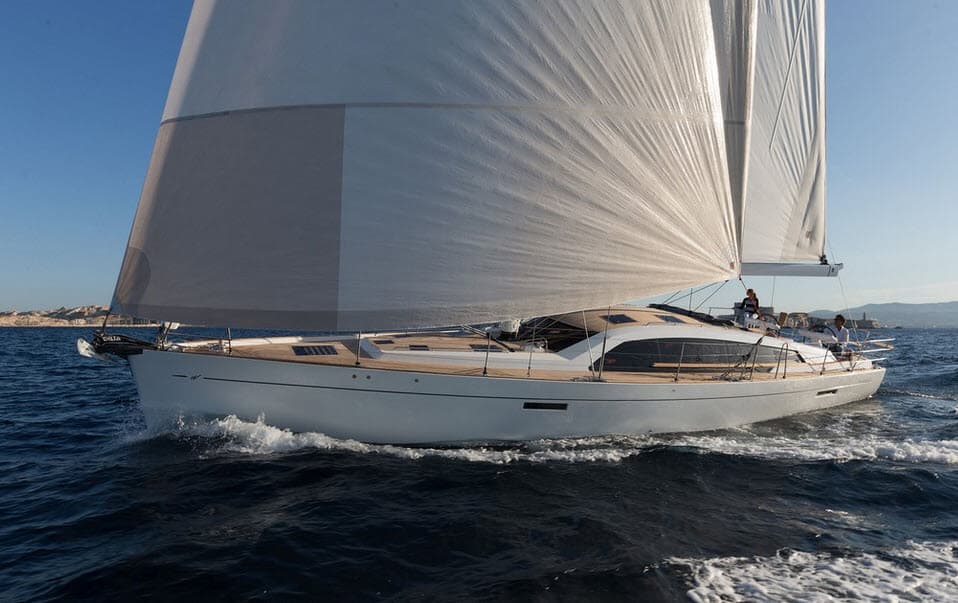

2017 Wauquiez Pilot Saloon 58 Deep draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

15.61 m

See all details

Overview

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.04
Upwind SA to Displacement	17.5
Downwind SA to Displacement	34.99
Hull Displacement Speed	0.04
Displacement to Length (D/L)	5.39
Ballast to Displacement (B/D)	0.32
