Boat Overview
Type
Maker
Hull type
Hull Material
Composite_Material
Category
Boat length (LOA)
17.71 m
Specs
Main
| Maker | Wauquiez |
| Maker website | https://www.wauquiez.com |

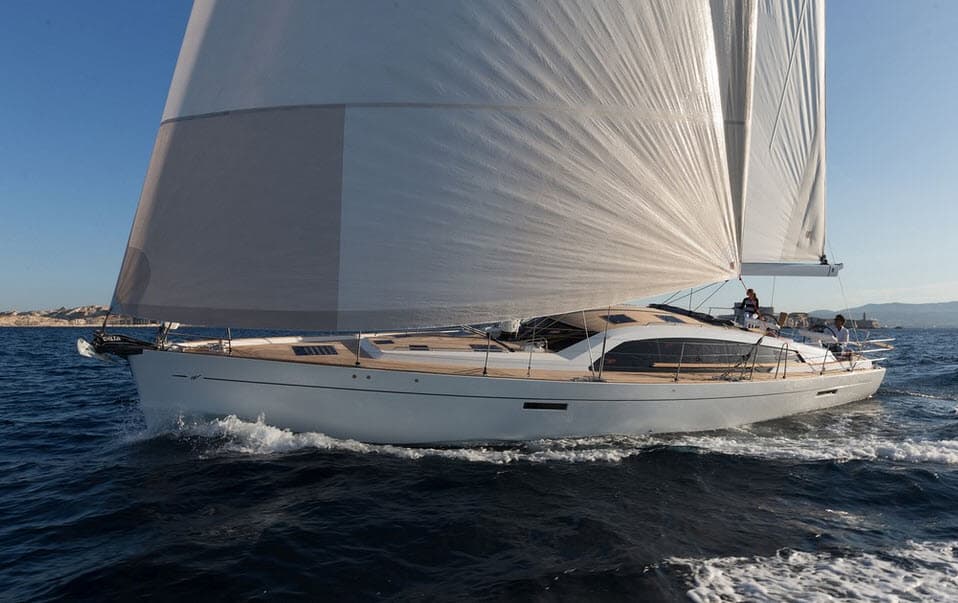

| Model | Pilot Saloon 58 Shoal draft |
| First built hull | 2017 |
| Version | Shoal draft |
| Price | 695,000 € |
| Boat type | Sail |
| Category | Cruiser Boats |
| Hull type | Monohull |
| Hull material | Composite_Material |
General
| Top speed | 15.43 kmh |
| Length overall | 17.71 m |
| Length at waterline | 15.61 m |
| Beam overall | 4.94 m |
| Beam hull | 2.04 m |
| Draft maximum | 1.86 m |
| Displacement | 21,499.81 kg |
| Ballast weight | 6,900.04 kg |
| Helm | 2 wheels |
| Rudder | 1 spade rudder |
| Cockpit | Open aft cockpit |
Designer
| Naval architect | |
| Name/Studio | Berret-Racoupeau Yacht Design |
| Website | http://www.berret-racoupeau.com/ |
Rig & Sails
| Spars | Mast and boom in Aluminum |
| Standing rigging | 1x19 strand wire discontinuous |
| Number of spreaders | 3 |
| Spreaders angle | Swept-back |
| Upwind sail area | 133.04 sq.m |
| Downwind sail area | 265.98 sq.m |
Engine
| Engine A | |
| Engine B | |
| Power | 150 HP |
| Type | inboard |
Storage
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.04 |
| Upwind SA to Displacement | 17.5 |
| Downwind SA to Displacement | 34.99 |
| Hull Displacement Speed | 0.04 |
| Displacement to Length (D/L) | 9.59 |
| Ballast to Displacement (B/D) | 0.32 |
| Capsize Screening Formula (CSF) | 1.79 |
