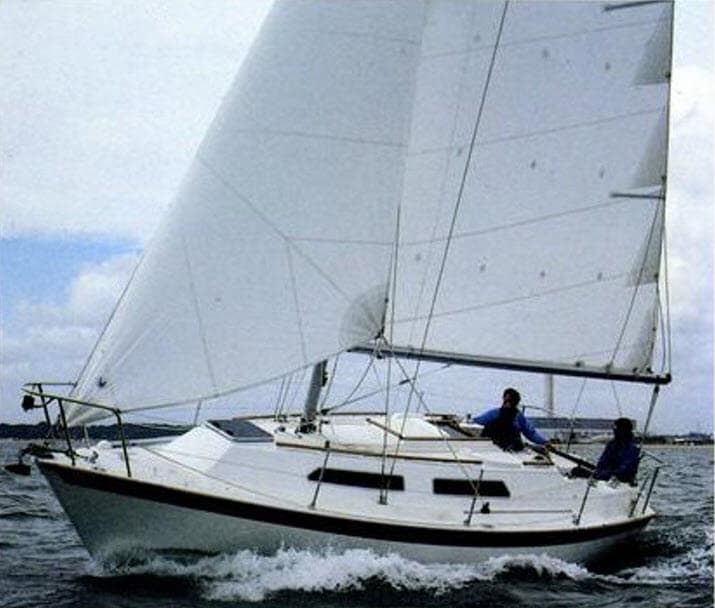

1984 Westerly Merlin 28 Fin keel

1299

Report error

1984 Westerly Merlin 28 Fin keel

No gallery images

Boat Overview

Type
Sail
Maker
Westerly
Hull type
Monohull
Hull Material
Composite_Material
Category
Cruiser Boats
Boat length (LOA)
8.78 m
See all details

Overview

Performance & Ratios

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Hide empty fields

Main

Name	Value
Maker	Westerly
Model	Merlin 28 Fin keel
First built hull	1984
Version	Fin keel
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

General

Name	Value
Top speed	10.48 kmh
Mast height	11.22 m
Length overall	8.78 m
Length at waterline	7.22 m
Beam overall	2.78 m
Draft maximum	1.52 m
Displacement	3,489.94 kg
Ballast weight	1,354.88 kg
Helm	1 tiller
Rudder	1 transom hung rudder
Cockpit	Closed aft cockpit

Designer

Name	Value
Naval architect
Name/Studio	Edward Dubois

Rig & Sails

Name	Value
Mast	36.8
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire continuous
Number of spreaders	1
Spreaders angle	Swept-back
Upwind sail area	41.16 sq.m
Downwind sail area	57.41 sq.m
Mainsail A	208.00
Spinnaker A	410.00
Spinnaker A	129.00
Spinnaker A	46.00

Engine

Name	Value
Engine A
Type	Inboard engine ; Diesel
Engine B

Storage

Name	Value
No data

Performance & Ratios

Hide empty fields

Detail

Name	Value
Sail Area to Displacement (SA/D)	0.03
Upwind SA to Displacement	18.19
Downwind SA to Displacement	25.38
Hull Displacement Speed	0.03
Displacement to Length (D/L)	6.52
Ballast to Displacement (B/D)	0.39
Capsize Screening Formula (CSF)	1.85
