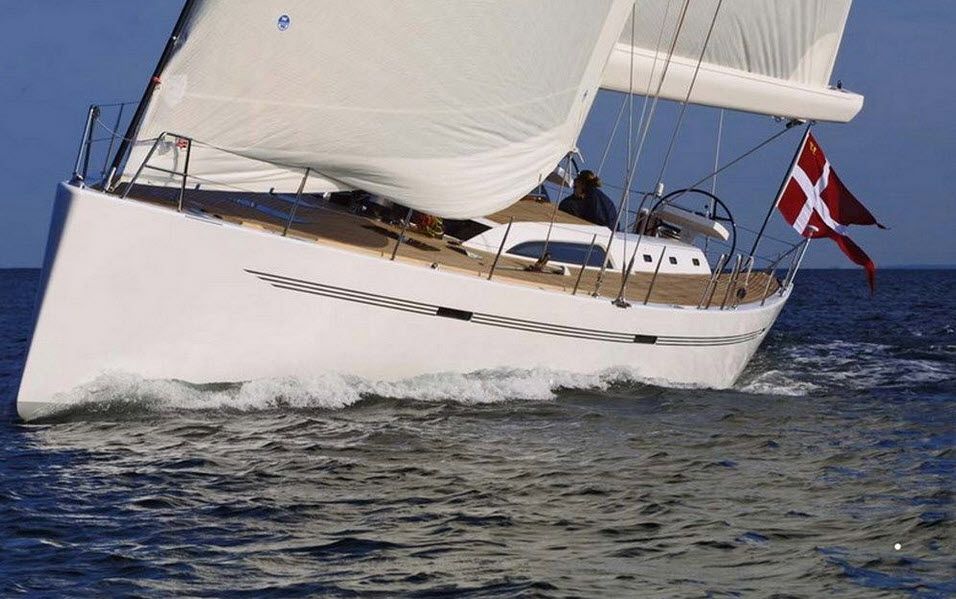

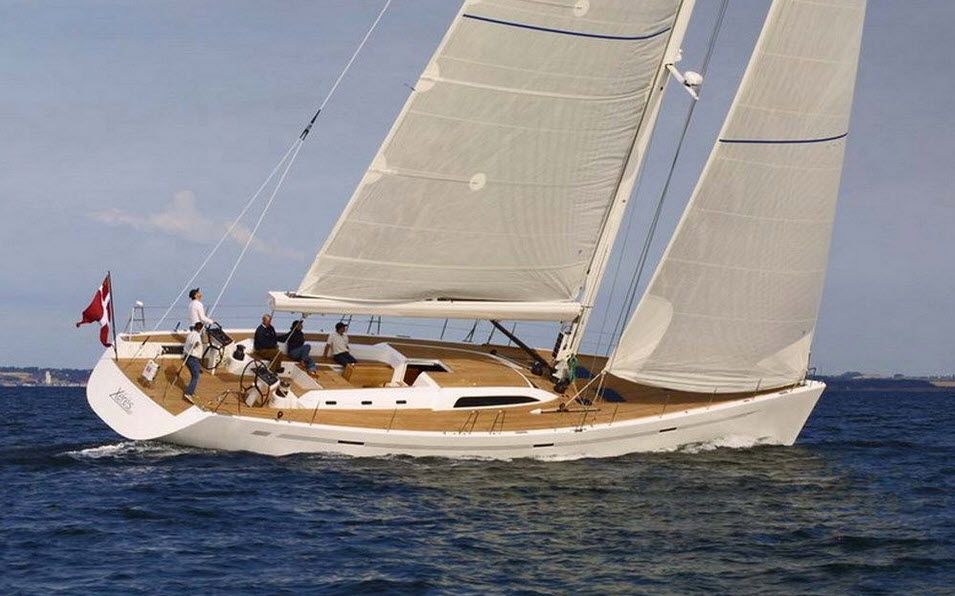

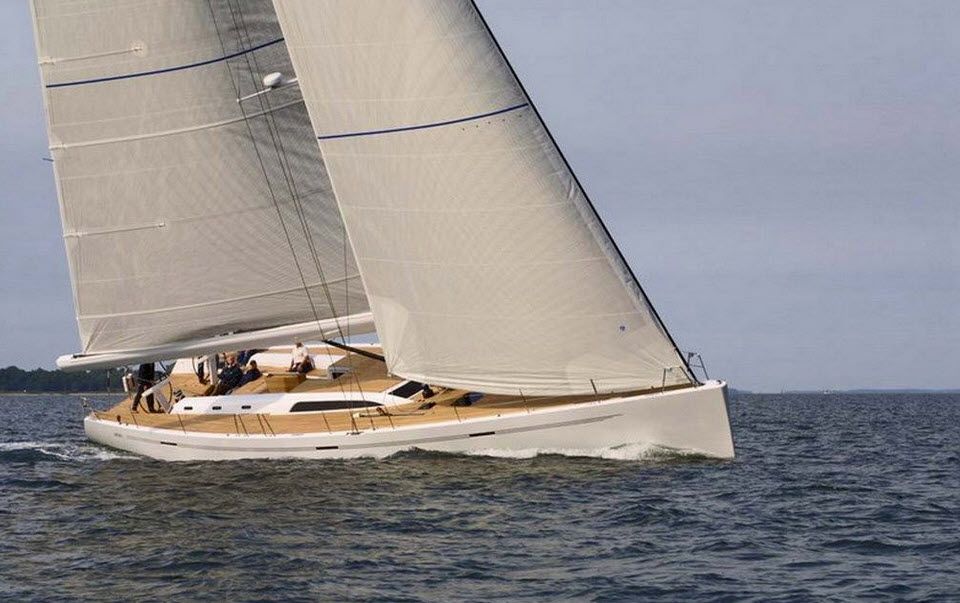

2005 X-Yachts IMX 70

1320

Report error

2005 X-Yachts IMX 70
2005 X-Yachts IMX 70
2005 X-Yachts IMX 70
2005 X-Yachts IMX 70
2005 X-Yachts IMX 70
2005 X-Yachts IMX 70
2005 X-Yachts IMX 70
2005 X-Yachts IMX 70

Boat Overview

Overview

Specs
Main
General
Designer
Rig & Sails
Engine
Storage
Performance & Ratios
Detail

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
MakerX-Yachts
Maker websitehttps://www.x-yachts.com
ModelIMX 70
First built hull2005
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialFiberglass
General
Top speed16.87 kmh
Length overall21.4 m
Length at waterline18.62 m
Beam overall5.39 m
Draft maximum3.99 m
Displacement28,000 kg
Ballast weight10,300 kg
Ballast typeCast iron fin with lead bulb
Helm2 wheels
Rudder1 spade rudder
CockpitOpen aft cockpit
Designer
Naval architect
Name/StudioNiels Jeppesen
Websitehttp://www.x-yachts.com/
Rig & Sails
SparsMast and boom in Carbon fiber
Number of spreaders3
Spreaders angleSwept-back
Upwind sail area273.23 sq.m
Downwind sail area525.74 sq.m
Engine
Engine A
Power80 HP
TypeInboard
Engine B
Power80 HP
TypeInboard
Storage

Performance & Ratios

Detail
Sail Area to Displacement (SA/D) 30.13
Upwind SA to Displacement30.13
Downwind SA to Displacement57.97
Hull Displacement Speed 10.47
Displacement to Length (D/L) 120.81
Ballast to Displacement (B/D) 0.37
Capsize Screening Formula (CSF) 1.79
