Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	X-312 Fractional rigging
First built hull	1989
Version	Fractional rigging
Boat type	Sail
Category	Cruiser/Racer Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	10.7 kmh
Length overall	9.27 m
Length at waterline	7.53 m
Beam overall	2.77 m
Headroom	1.56 m
Draft maximum	1.74 m
Displacement	3,355.22 kg
Ballast weight	1,650.17 kg
Ballast type	Cast iron / lead fin
Helm	1 tiller
Rudder	1 spade rudder
Cockpit	Closed aft cockpit

Name	Value
Naval architect
Name/Studio	Niels Jeppesen
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum
Number of spreaders	2
Spreaders angle	0 °
Upwind sail area	52.68 sq.m
Downwind sail area	84.54 sq.m
Mainsail A	290.00
Spinnaker A	620.00

Name	Value
Engine A
Power	17 HP
Type	Inboard engine ; Diesel
Engine B

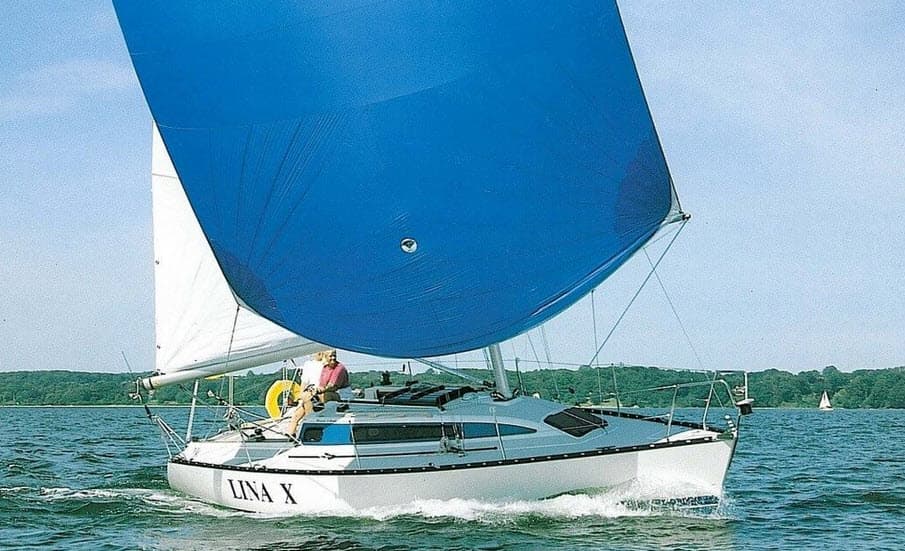

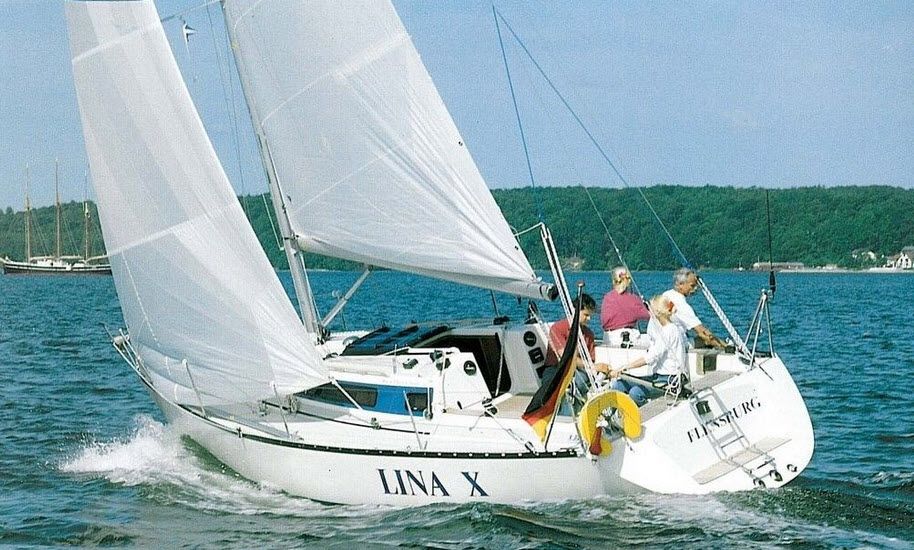

1989 X-Yachts X-312 Fractional rigging

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

9.27 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.05
Upwind SA to Displacement	23.9
Downwind SA to Displacement	38.36
Hull Displacement Speed	0.05
Displacement to Length (D/L)	6.66
Ballast to Displacement (B/D)	0.49
Capsize Screening Formula (CSF)	1.87
