Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	X-37 Shoal draft
First built hull	2004
Version	Shoal draft
Boat type	Sail
Category	Cruiser/Racer Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	12.21 kmh
Mast height	18.44 m
Length overall	11.34 m
Length at waterline	9.78 m
Beam overall	3.51 m
Headroom	1.86 m
Draft maximum	1.74 m
Displacement	6,400.18 kg
Ballast weight	2,715.2 kg
Helm	1 wheel
Rudder	1 spade rudder
Cockpit	Closed aft cockpit

Name	Value
Naval architect
Name/Studio	Niels Jeppesen
Website	http://www.x-yachts.com/

Name	Value
Mast	60.5
Spars	Mast and boom in Aluminum
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	86.59 sq.m
Downwind sail area	150.5 sq.m
Mainsail A	470.00
Spinnaker A	1150.00

Name	Value
Engine A
Power	29 HP
Type	Inboard engine ; Diesel
Engine B

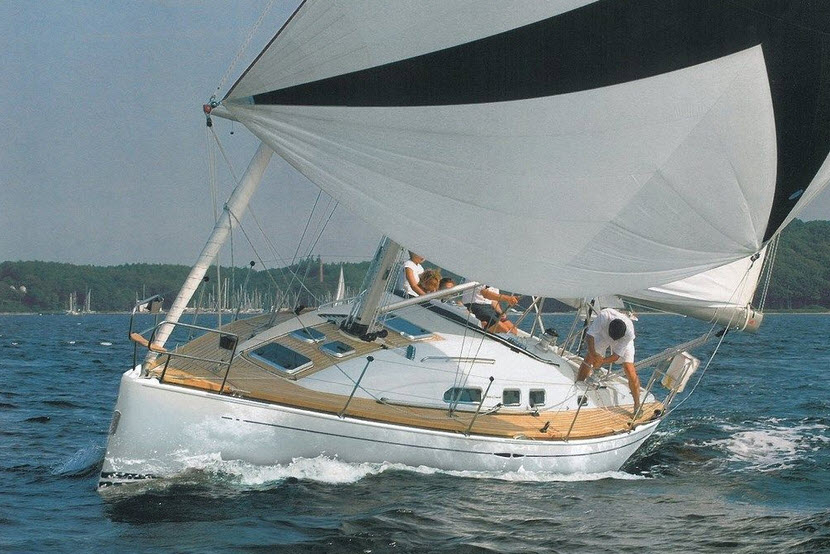

2004 X-Yachts X-37 Shoal draft

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

11.34 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.05
Upwind SA to Displacement	25.55
Downwind SA to Displacement	44.41
Hull Displacement Speed	0.05
Displacement to Length (D/L)	7.59
Ballast to Displacement (B/D)	0.42
Capsize Screening Formula (CSF)	1.91
