Boat Overview
Type
Maker
Hull type
Hull Material
Fiberglass
Category
Boat length (LOA)
19.85 m
Specs
Main
| Maker | X-Yachts |
| Maker website | https://www.x-yachts.com |

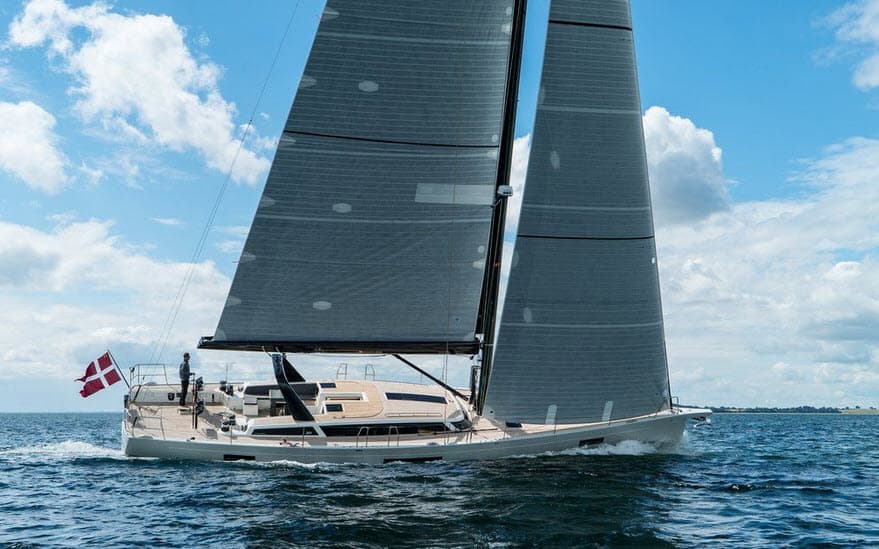

| Model | X6-5 Standard |
| First built hull | 2016 |
| Version | Standard |
| Price | 2,060,000 € |
| Boat type | Sail |
| Category | Racer Boats |
| Hull type | Monohull |
| Hull material | Fiberglass |
General
| Top speed | 16.5 kmh |
| Length overall | 19.85 m |
| Length at waterline | 17.89 m |
| Beam overall | 5.43 m |
| Draft maximum | 2.77 m |
| Displacement | 29,499.81 kg |
| Ballast weight | 10,899.82 kg |
| Helm | 2 wheels |
| Rudder | 2 spade rudders |
| Cockpit | Open aft cockpit |
Designer
| Naval architect | |
| Name/Studio | Niels Jeppesen |
| Website | http://www.x-yachts.com/ |
Rig & Sails
| Spars | Mast and boom in Aluminum (carbon fiber as an option) |
| Number of spreaders | 3 |
| Spreaders angle | Swept-back |
| Upwind sail area | 219.99 sq.m |
| Downwind sail area | 409.98 sq.m |
Engine
| Engine A | |
| Engine B | |
| Power | 160 HP |
| Type | inboard |
Storage
Performance & Ratios
Detail
| Sail Area to Displacement (SA/D) | 0.05 |
| Upwind SA to Displacement | 23.44 |
| Downwind SA to Displacement | 43.68 |
| Hull Displacement Speed | 0.05 |
| Displacement to Length (D/L) | 10.27 |
| Ballast to Displacement (B/D) | 0.37 |
| Capsize Screening Formula (CSF) | 1.77 |
