Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	Xc 35 Shoal draft
First built hull	2014
Version	Shoal draft
Price	168,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	12.1 kmh
Length overall	10.36 m
Length at waterline	9.63 m
Beam overall	3.54 m
Draft maximum	1.58 m
Displacement	6,450.08 kg
Ballast weight	2,150.03 kg
Ballast type	Cast iron
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Closing aft cockpit with opening system

Name	Value
Naval architect
Name/Studio	X-Yachts Design Group
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	Single-strand (ROD)
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	73.49 sq.m
Downwind sail area	136.85 sq.m
Mainsail A	385.00
Spinnaker A	1089.00

Name	Value
Engine A
Power	30 HP
Type	Inboard engine ; Diesel
Engine B

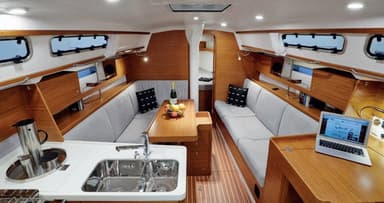

2014 X-Yachts Xc 35 Shoal draft

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

10.36 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	10.5
Upwind SA to Displacement	21.57
Downwind SA to Displacement	40.17
Hull Displacement Speed	7.53
Displacement to Length (D/L)	201.18
Ballast to Displacement (B/D)	33.33
Capsize Screening Formula (CSF)	1.92
