Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	Xc 42 Standard
First built hull	2009
Version	Standard
Price	367,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	13.23 kmh
Length overall	12.8 m
Length at waterline	11.49 m
Beam overall	4.15 m
Headroom	1.89 m
Draft maximum	1.86 m
Displacement	11,400.13 kg
Ballast weight	5,160.06 kg
Ballast type	Cast iron fin with lead bulb
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Closing aft cockpit with opening system

Name	Value
Naval architect
Name/Studio	X-Yachts Design Group
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	Single-strand (ROD)
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	110.28 sq.m
Downwind sail area	211.17 sq.m
Mainsail A	570.00
Spinnaker A	1703.00

Name	Value
Engine A
Power	55 HP
Type	Inboard engine ; Diesel
Engine B

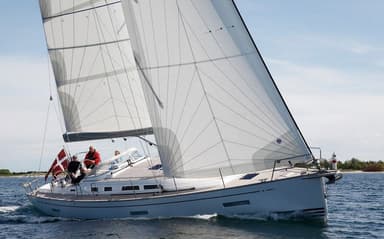

2009 X-Yachts Xc 42 Standard

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

12.8 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	10.63
Upwind SA to Displacement	22.14
Downwind SA to Displacement	42.4
Hull Displacement Speed	8.23
Displacement to Length (D/L)	209.4
Ballast to Displacement (B/D)	45.26
Capsize Screening Formula (CSF)	1.86
