Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	Xc 45 Standard
First built hull	2008
Version	Standard
Price	467,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	13.95 kmh
Length overall	13.9 m
Length at waterline	12.53 m
Beam overall	4.33 m
Draft maximum	2.19 m
Displacement	13,219.94 kg
Ballast weight	5,965.19 kg
Ballast type	Cast iron fin with lead bulb
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Closing aft cockpit with opening system

Name	Value
Naval architect
Name/Studio	X-Yachts Design Group
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	Single-strand (ROD)
Number of spreaders	3
Spreaders angle	Swept-back
Upwind sail area	126.63 sq.m
Downwind sail area	241.27 sq.m
Mainsail A	660.00
Spinnaker A	1938.00

Name	Value
Engine A
Power	80 HP
Type	Inboard engine ; Diesel
Engine B

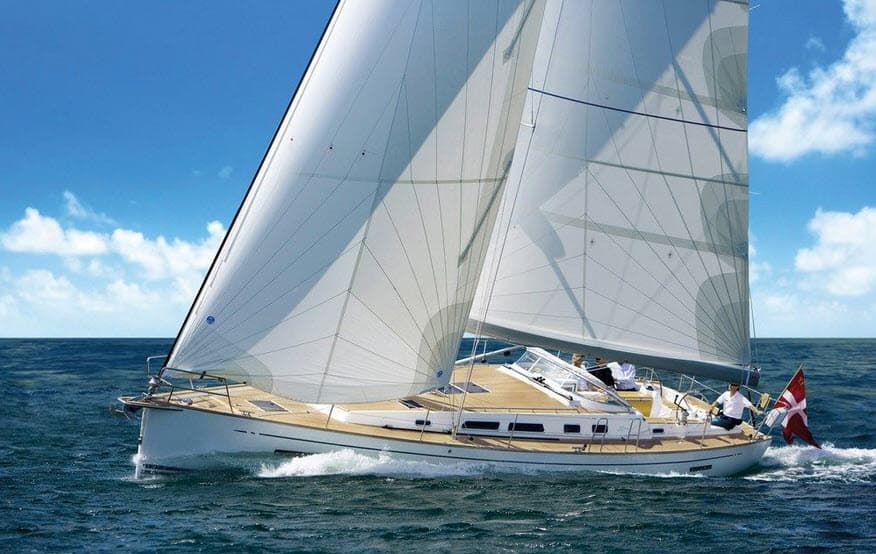

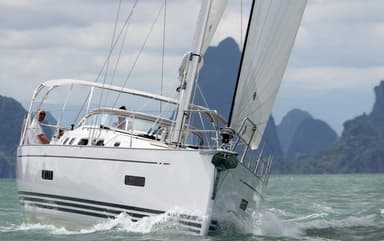

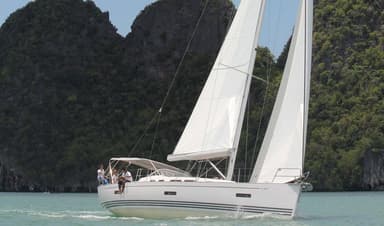

2008 X-Yachts Xc 45 Standard

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

13.9 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.05
Upwind SA to Displacement	23.04
Downwind SA to Displacement	43.89
Hull Displacement Speed	0.05
Displacement to Length (D/L)	8.59
Ballast to Displacement (B/D)	0.45
Capsize Screening Formula (CSF)	1.85
