Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	Xc 50 Shoal draft
First built hull	2010
Version	Shoal draft
Price	660,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	14.36 kmh
Length overall	15 m
Length at waterline	13.53 m
Beam overall	4.6 m
Draft maximum	1.98 m
Displacement	16,084.83 kg
Ballast weight	7,219.82 kg
Ballast type	Cast iron fin with lead bulb
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Closing aft cockpit with opening system

Name	Value
Naval architect
Name/Studio	X-Yachts Design Group
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum
Standing rigging	Single-strand (ROD)
Number of spreaders	3
Spreaders angle	Swept-back
Upwind sail area	133.22 sq.m
Downwind sail area	253.07 sq.m
Mainsail A	787.00
Spinnaker A	1938.00

Name	Value
Engine A
Power	100 HP
Type	Inboard engine ; Diesel
Engine B

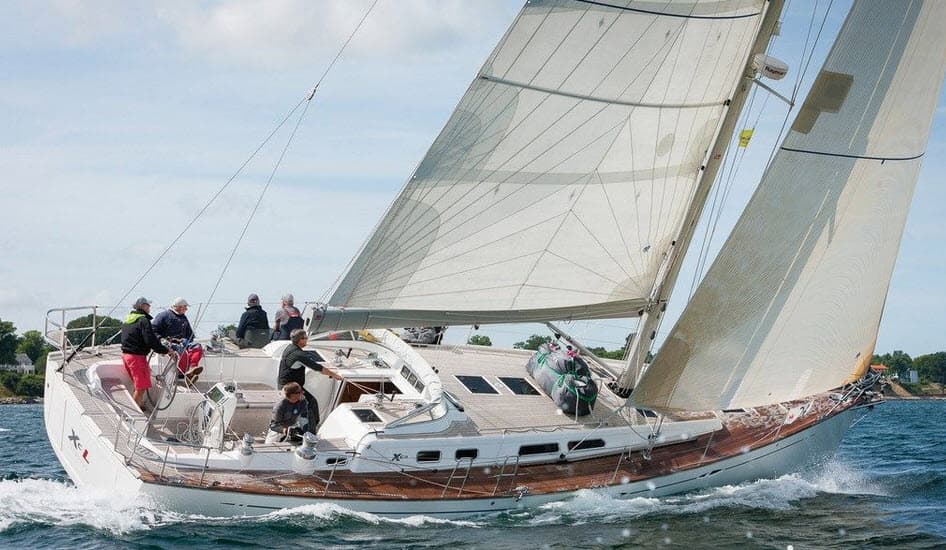

2010 X-Yachts Xc 50 Shoal draft

Boat Overview

Type

Maker

Hull type

Hull Material

Composite_Material

Category

Boat length (LOA)

15 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.05
Upwind SA to Displacement	21.27
Downwind SA to Displacement	40.4
Hull Displacement Speed	0.05
Displacement to Length (D/L)	8.93
Ballast to Displacement (B/D)	0.45
Capsize Screening Formula (CSF)	1.84
