Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	Xp 50 Deep draft
First built hull	2012
Version	Deep draft
Price	595,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	14.24 kmh
Length overall	15 m
Length at waterline	13.35 m
Beam overall	4.45 m
Draft maximum	2.77 m
Displacement	11,899.99 kg
Ballast weight	5,140.1 kg
Ballast type	Cast iron fin with lead bulb
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Open aft cockpit

Name	Value
Naval architect
Name/Studio	X-Yachts Design Group
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum (carbon fiber as an option)
Standing rigging	Single-strand (ROD)
Number of spreaders	3
Spreaders angle	Swept-back
Upwind sail area	151.9 sq.m
Downwind sail area	297.57 sq.m
Mainsail A	943.00
Spinnaker A	2260.00

Name	Value
Engine A
Power	75 HP
Type	Inboard engine ; Diesel
Engine B

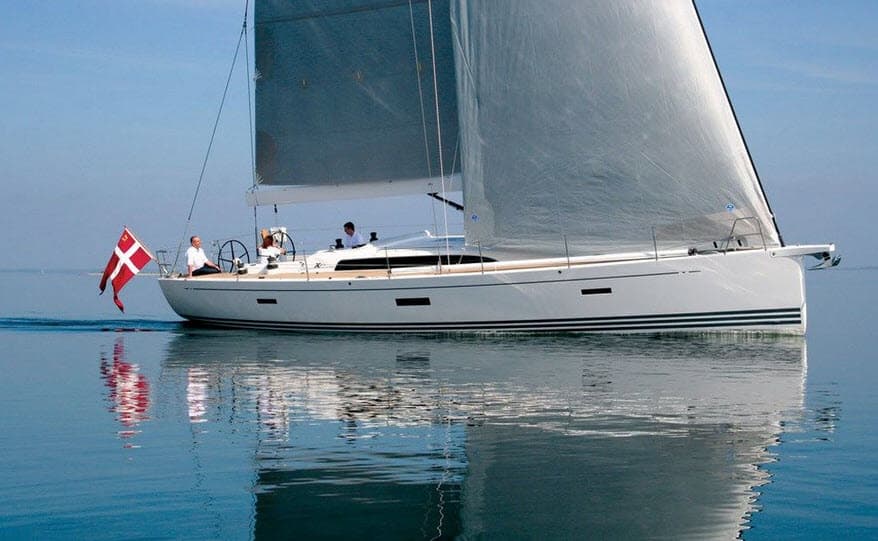

2012 X-Yachts Xp 50 Deep draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

15 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.07
Upwind SA to Displacement	29.64
Downwind SA to Displacement	58.07
Hull Displacement Speed	0.07
Displacement to Length (D/L)	8.87
Ballast to Displacement (B/D)	0.43
Capsize Screening Formula (CSF)	1.97
