Name	Value
Maker	X-Yachts
Maker website	https://www.x-yachts.com
Model	Xp 55 Deep draft
First built hull	2013
Version	Deep draft
Price	775,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	15.06 kmh
Length overall	16.76 m
Length at waterline	14.66 m
Beam overall	4.79 m
Draft maximum	3.23 m
Displacement	16,800.14 kg
Ballast weight	6,299.94 kg
Ballast type	Cast iron fin with lead bulb
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Open aft cockpit

Name	Value
Naval architect
Name/Studio	X-Yachts Design Group
Website	http://www.x-yachts.com/

Name	Value
Spars	Mast and boom in Aluminum (carbon fiber as an option)
Standing rigging	Single-strand (ROD)
Number of spreaders	3
Spreaders angle	Swept-back
Upwind sail area	174.38 sq.m
Downwind sail area	339.56 sq.m
Mainsail A	1072.00
Spinnaker A	2583.00

Name	Value
Engine A
Power	110 HP
Type	Inboard engine ; Diesel
Engine B

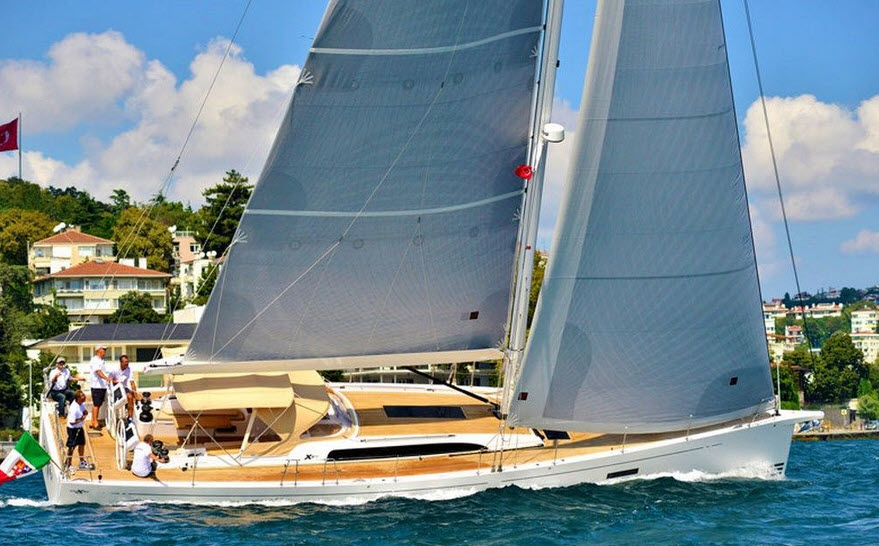

2013 X-Yachts Xp 55 Deep draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

16.76 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	15.44
Upwind SA to Displacement	27.04
Downwind SA to Displacement	52.65
Hull Displacement Speed	9.29
Displacement to Length (D/L)	148.58
Ballast to Displacement (B/D)	37.5
Capsize Screening Formula (CSF)	1.88
