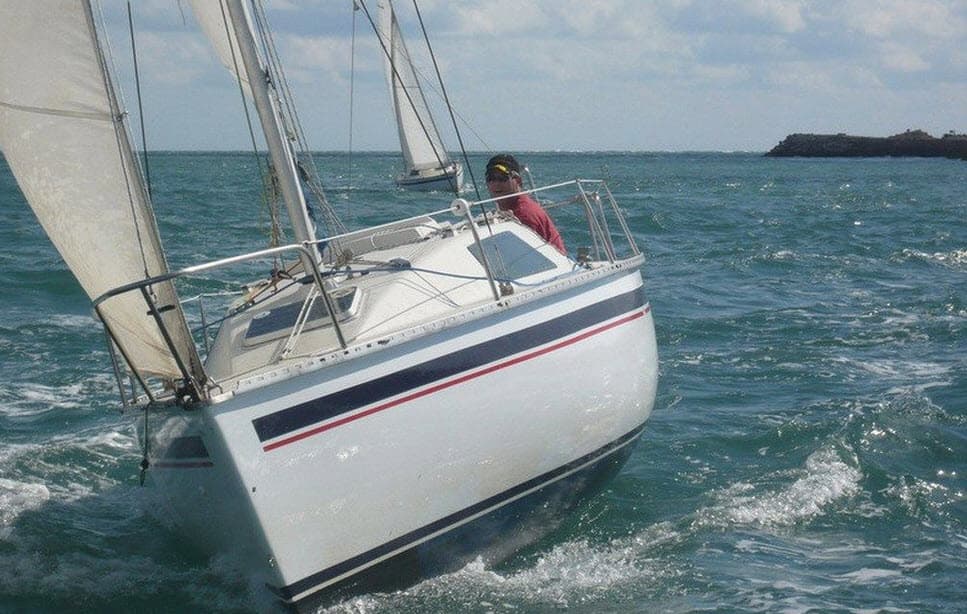

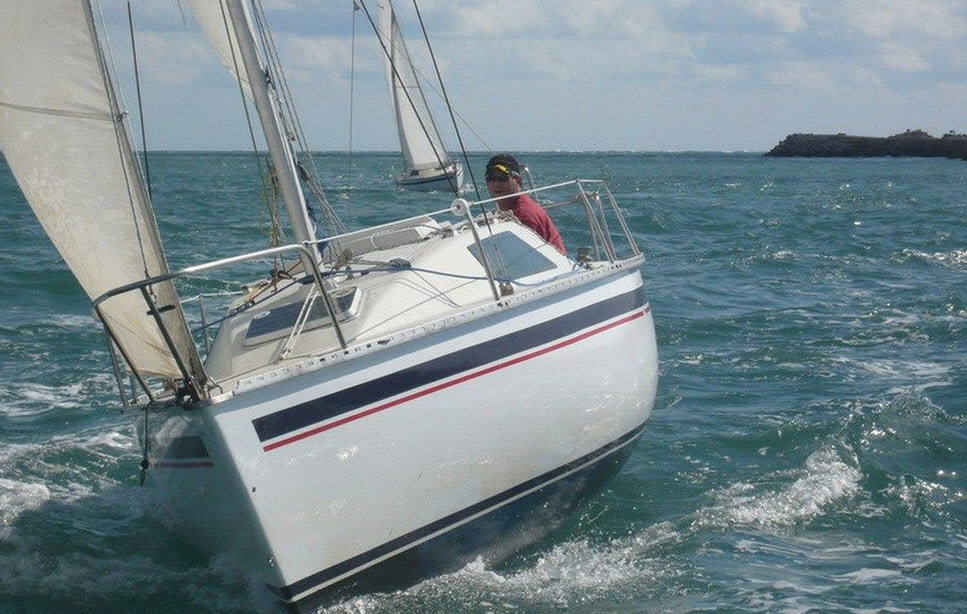

1976 Yachting France Jouët 680 Centerboard (Trunk)

1645

Report error

1976 Yachting France Jouët 680 Centerboard (Trunk)

No gallery images

1976 Yachting France Jouët 680 Centerboard (Trunk)
Preview

Boat Overview

Specs

Main
NameValue
MakerYachting France
ModelJouët 680 Centerboard (Trunk)
First built hull1976
Boat typeSail
CategoryCruiser Boats
Hull typeMonohull
Hull materialFiberglass
General
NameValue
Top speed9.61 kmh
Length overall7.92 m
Length at waterline5.82 m
Beam overall2.17 m
Headroom1.52 m
Draft maximum1.46 m
Displacement1,500.03 kg
Ballast weight645.01 kg
Ballast typeCast iron interior ballast with steel centerboard
Helm1 tiller
Rudder1 transom hung rudder
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioJean Berret
Websitehttp://www.berret-racoupeau.com/
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire continuous
Number of spreaders1
Spreaders angle0 °
Upwind sail area25.08 sq.m
Downwind sail area41.53 sq.m
Mainsail A129.00
Spinnaker A318.00
Spinnaker A90.00
Spinnaker A36.00
Engine
NameValue
Engine A
TypeOutboard Engine ; Gas
Engine B
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.04
Upwind SA to Displacement19.47
Downwind SA to Displacement32.23
Hull Displacement Speed 0.04
Displacement to Length (D/L) 5.86
Ballast to Displacement (B/D) 0.43
Capsize Screening Formula (CSF) 1.91
