Boat Overview

Boat Description

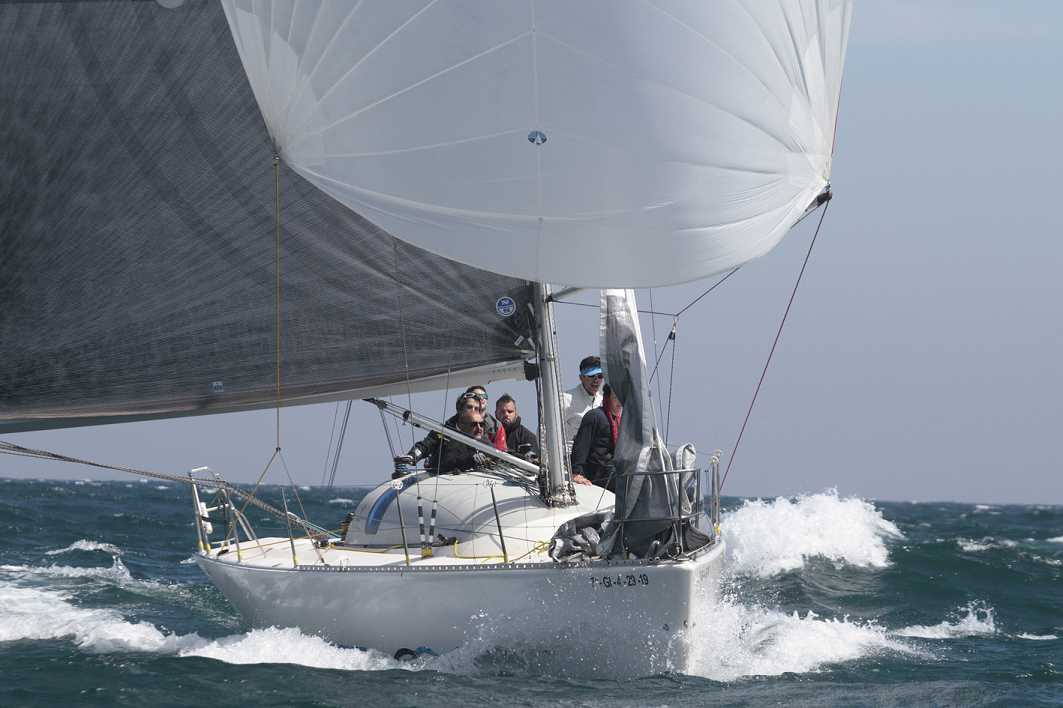

Quality, rapidity, simplicity, is the summary of the specifications that led to the creation of this new mono type designed by Daniel Andrieu. Characteristics in the design of the water lines, the keel and the saffron, the ergonomics of the deck plan and the comfort of the cockpit where everything is within reach of the hand and where each adjustment can be carried out effortlessly .



Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerJeanneau
Maker websitehttps://www.jeanneau.fr
ModelJod 35
First built hull1990
Price34,123 $
Boat typeSail
CategoryRacer Boats
Hull typeMonohull
Hull materialMonohull
Births6
Heads1
General
NameValue
Top speed11.75 kmh
Length overall10.39 m
Length at waterline9.08 m
Beam overall3.54 m
Headroom1.77 m
Draft maximum1.98 m
Displacement3,650.05 kg
Ballast weight1,250.1 kg
Ballast typeCast iron
Helm1 tiller
Rudder1 spade rudder
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioDaniel Andrieu
Websitehttp://www.andrieudesign.com/
Rig & Sails
NameValue
SparsMast and boom in Aluminum
Standing riggingSingle-strand (ROD) discontinuous
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area71.91 sq.m
Downwind sail area120.03 sq.m
Mainsail A448
Headsail A326
Headsail B65
Spinnaker A844
Engine
NameValue
Engine A
FuelDiesel
Power18 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.06
Upwind SA to Displacement30.85
Downwind SA to Displacement51.5
Hull Displacement Speed 0.06
Displacement to Length (D/L) 7.31
Ballast to Displacement (B/D) 0.34
Capsize Screening Formula (CSF) 2.32
