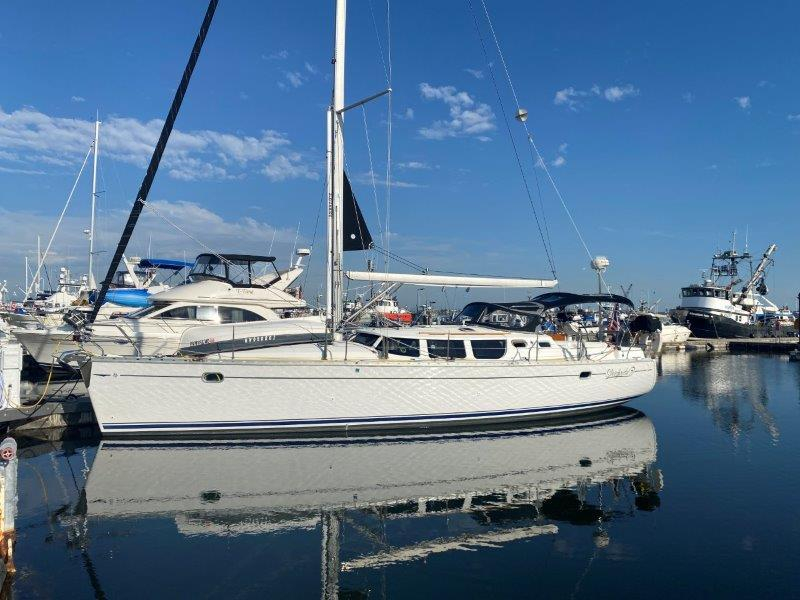

1997 Jeanneau Sun Odyssey 40 DS

1476

Report error

1997 Jeanneau Sun Odyssey 40 DS

No gallery images

1997 Jeanneau Sun Odyssey 40 DS
Preview

Boat Overview

Boat Description

The boat, designed by Daniel Andrieu, should be a phenomenal success. Built around a very quick hull, the inside has exceptional space and volume. There is a modern look to the exterior, with twin helm stations in the aft cockpit for incredible comfort.

As for the interior, the Design Office worked from the same general layout and conception as the Sun Odyssey 40DS, combining fine teak woodwork with the new satin varnish, in Jeanneau's finest style.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerJeanneau
Maker websitehttps://www.jeanneau.fr
ModelSun Odyssey 40 DS
First built hull1997
Last built hull2005
Price149,500 $
Boat typeSail
CategoryCruiser BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins3
Births8
Heads2
General
NameValue
Top speed12.46 kmh
Mast height17.71 m
Length overall12.19 m
Length at waterline10.21 m
Beam overall3.96 m
Headroom1.86 m
Draft maximum1.25 m
Displacement7,184.9 kg
Ballast weight2,399.96 kg
Ballast typeCast iron
Helm1 wheel
Rudder1 spade rudder
CockpitClosed aft cockpit
Designer
NameValue
Naval architect
Name/StudioAndrieu Yacht Design
Rig & Sails
NameValue
Mast58.1
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area76.09 sq.m
Downwind sail area137.68 sq.m
Mainsail A320
Headsail A499
Spinnaker A1163
Engine
NameValue
Engine A
FuelDiesel
Power40 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement20.32
Downwind SA to Displacement36.78
Hull Displacement Speed 0.05
Displacement to Length (D/L) 7.76
Ballast to Displacement (B/D) 0.33
Capsize Screening Formula (CSF) 2.07
