Boat Overview

Boat Description

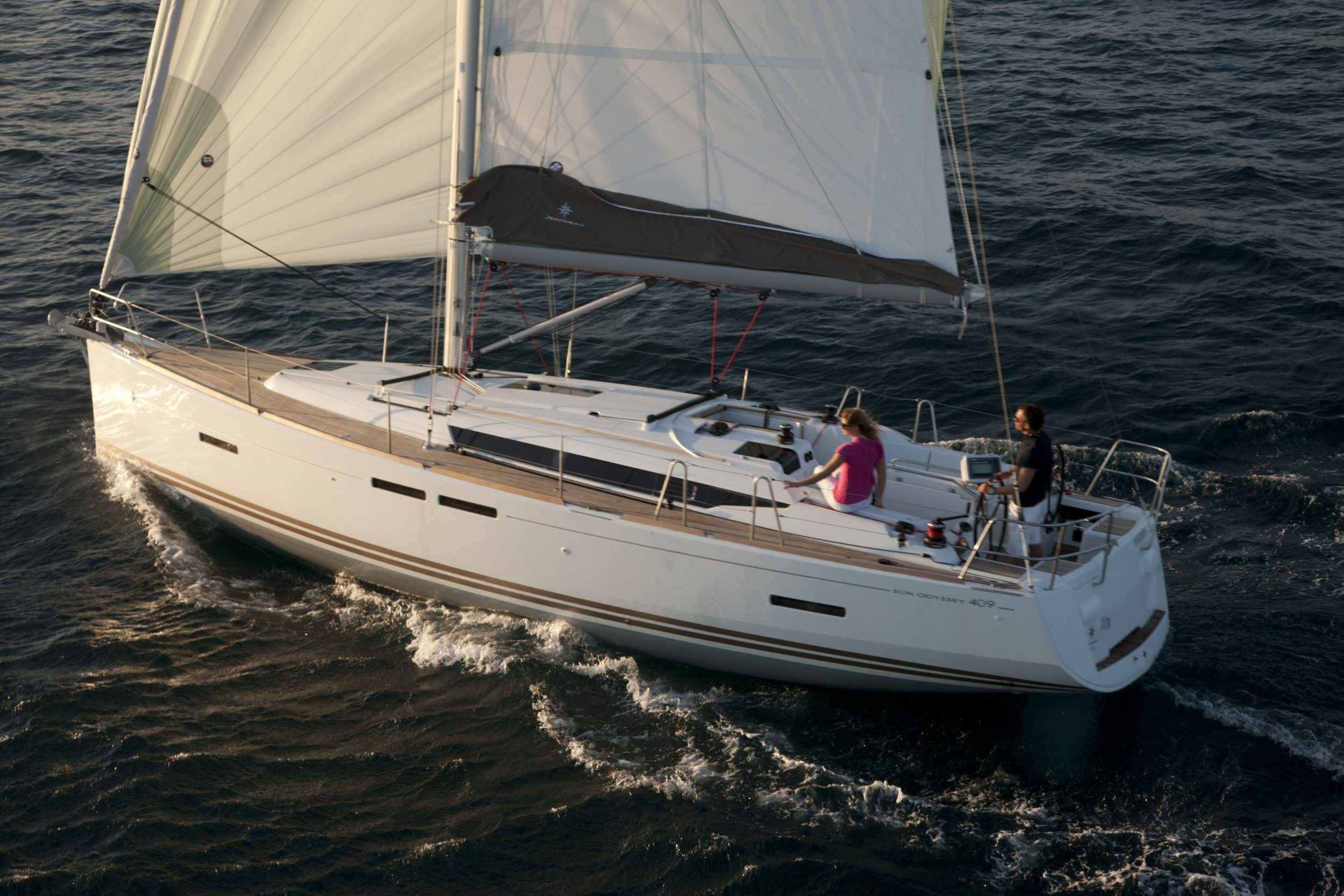

Above all a yacht must be elegant with sharp lines and fine details. The new Philippe Briand designed Sun Odyssey 409 is not only elegant, but also built for speed. A modern hull with a hard chine and excellent stability makes the Sun Odyssey 409 a pleasure to sail.

Discover the Pro

Hide ads, help pay for servers & development and unlock Pro only features like, sharing, advanced dashboard, extra storage space & more!

Try Pro for Free

Specs

Main
NameValue
MakerJeanneau
Maker websitehttps://www.jeanneau.fr
ModelSun Odyssey 409
First built hull2010
Last built hull2015
Price138,000 €
Boat typeSail
CategoryCruiser BoatsDaysailer Boats
Hull typeMonohull
Hull materialMonohull
Cabins3
Births8
Heads2
General
NameValue
Top speed12.96 kmh
Mast height18.44 m
Length overall12.37 m
Length at waterline11 m
Beam overall3.99 m
Headroom1.98 m
Draft maximum1.86 m
Displacement7,859.84 kg
Ballast weight2,259.8 kg
Ballast typeCast iron
Helm2 wheels
Rudder1 spade rudder
CockpitClosing aft cockpit with opening system
Designer
NameValue
Simple Empty
No data
Rig & Sails
NameValue
Mast60.5
SparsMast and boom in Aluminum
Standing rigging1x19 strand wire
Number of spreaders2
Spreaders angleSwept-back
Upwind sail area89.56 sq.m
Downwind sail area161.47 sq.m
Mainsail A468
Headsail A496
Headsail B350
Headsail C304
Spinnaker A1270
Spinnaker A1173
Engine
NameValue
Engine A
FuelDiesel
Power40 HP
TypeInboard
Storage
NameValue
Simple Empty
No data

Performance & Ratios

Detail
NameValue
Sail Area to Displacement (SA/D) 0.05
Upwind SA to Displacement23.04
Downwind SA to Displacement41.54
Hull Displacement Speed 0.05
Displacement to Length (D/L) 8.05
Ballast to Displacement (B/D) 0.29
Capsize Screening Formula (CSF) 2.03
