Philippe Briand

Fiberglass

<p>Monohull boats are vessels with just one hull, as the name itself suggests. They can be monohull <a href="https://theboatdb.com/boats/type/sail">sailboats</a> or <a href="https://theboatdb.com/boats/type/power">powerboats</a>, which means they can be powered by an engine or by the wind. In addition, monohull boats can have a high level of luxury on board and can therefore be referred to as monohull yachts. At TheBoatDB you can look into monohull boats and explore their features. In addition, you can filter your search through monohull sailboat manufacturers and explore all models available on our site. Compare all models on our website from the comfort of your home.</p>

Monohull

jeneau-51_1581424321

Factory

Code 0

Jeanneau

Euro

<p>The category of sailboats includes both <a href="https://theboatdb.com/boats/category/daysailer">sailing yachts</a> which are luxurious and charming vessels used for recreational purposes, as well as <a href="https://theboatdb.com/boats/category/cruiserracer">racing sailboats</a> that are used for sports. Some have a single hull while others can have two or three. Compare different types of sailboats through sailing boat specs on TheBoatDB and find out the best one for you. Choose according to boat specs, and explore sailboats that vary from very large vessels, appropriate for ocean cruising, to small ones used to roam the shores.</p>

Name	Value
Maker	Jeanneau
Maker website	https://www.jeanneau.fr
Model	Yachts 51 Shoal draft
First built hull	2016
Version	Shoal draft
Price	282,000 €
Boat type	Sail
Category	Cruiser Boats
Hull type	Monohull
Hull material	Monohull

Name	Value
Top speed	14.6 kmh
Mast height	21.95 m
Length overall	15.42 m
Length at waterline	14.97 m
Beam overall	4.72 m
Draft maximum	1.77 m
Displacement	14,850.15 kg
Ballast weight	4,750.02 kg
Ballast type	Cast iron
Helm	2 wheels
Rudder	1 spade rudder
Cockpit	Open aft cockpit

Name	Value
Naval architect
Name/Studio	Philippe Briand
Website	http://www.philippebriand.com

Name	Value
Mast	72
Spars	Mast and boom in Aluminum
Standing rigging	1x19 strand wire discontinuous
Number of spreaders	2
Spreaders angle	Swept-back
Upwind sail area	118.82 sq.m
Downwind sail area	162.86 sq.m
Mainsail A	677.00
Mainsail B	448.00
Mainsail C	1076.00

Name	Value
Engine A
Power	110 HP
Type	Inboard engine ; Diesel
Engine B

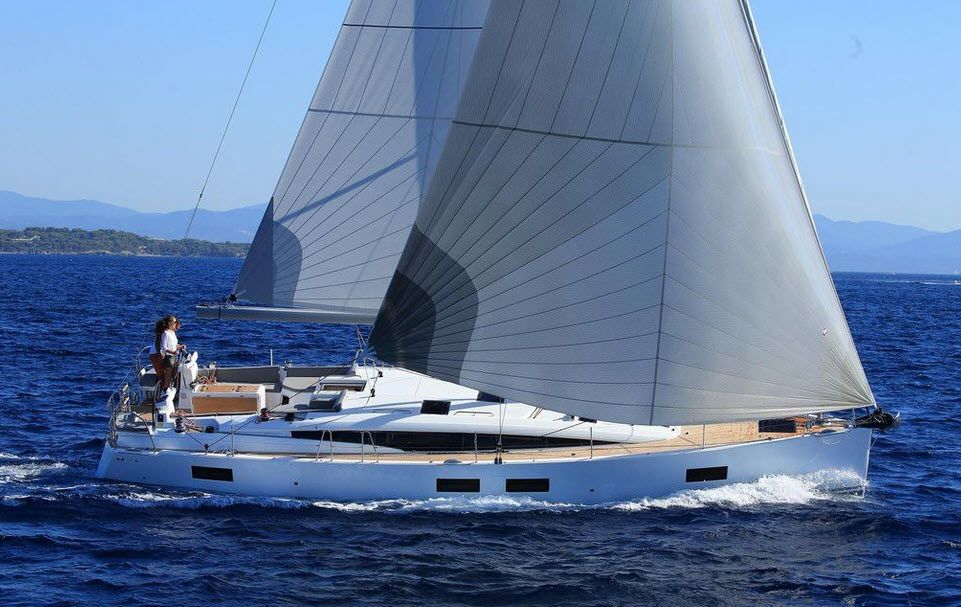

2016 Jeanneau Yachts 51 Shoal draft

Boat Overview

Type

Maker

Hull type

Hull Material

Fiberglass

Category

Boat length (LOA)

15.42 m

See all details

Overview

Discover the Pro

Specs

Performance & Ratios

Name	Value
Sail Area to Displacement (SA/D)	0.03
Upwind SA to Displacement	20
Downwind SA to Displacement	27.42
Hull Displacement Speed	0.03
Displacement to Length (D/L)	9.39
Ballast to Displacement (B/D)	0.32
Capsize Screening Formula (CSF)	1.94
