Boat Overview
Type
Maker
Hull type
Hull Material
Fiberglass
Category
Boat length (LOA)
8.96 m
Specs
Main
Name | Value |
---|---|
Maker | Kirie |
Model | Elite 286 - Fin keel |
First built hull | 1986 |
Version | Fin keel |
Boat type | Sail |
Category | Cruiser Boats |
Hull type | Monohull |
Hull material | Fiberglass |
General
Name | Value |
---|---|
Top speed | 10.72 kmh |
Mast height | 12.34 m |
Length overall | 8.96 m |
Length at waterline | 7.56 m |
Beam overall | 3.05 m |
Headroom | 1.86 m |
Draft maximum | 1.74 m |
Displacement | 2,500.2 kg |
Ballast weight | 790.16 kg |
Ballast type | Cast iron |
Helm | 1 tiller |
Rudder | 1 semi-spade rudder |
Cockpit | Closed aft cockpit |
Designer
Name | Value |
---|---|
Naval architect | |
Name/Studio | Gilles Vaton |
Website | http://www.vaton-design.com/ |
Rig & Sails
Name | Value |
---|---|
Mast | 40.5 |
Spars | Mast and boom in Aluminum |
Standing rigging | 1x19 strand wire continuous |
Number of spreaders | 1 |
Spreaders angle | Swept-back |
Upwind sail area | 43.01 sq.m |
Downwind sail area | 79.62 sq.m |
Mainsail A | 172.00 |
Spinnaker A | 685.00 |
Spinnaker A | 41.00 |
Spinnaker A | 85.00 |

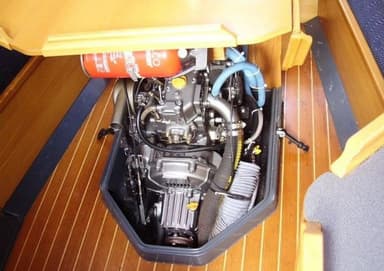

Engine
Name | Value |
---|---|
Engine A | |
Power | 18 HP |
Type | Inboard engine ; Diesel |
Engine B |
Storage
Name | Value |
---|---|
No data |
Performance & Ratios
Detail
Name | Value |
---|---|
Sail Area to Displacement (SA/D) | 0.05 |
Upwind SA to Displacement | 23.75 |
Downwind SA to Displacement | 43.96 |
Hull Displacement Speed | 0.05 |
Displacement to Length (D/L) | 6.67 |
Ballast to Displacement (B/D) | 0.32 |
Capsize Screening Formula (CSF) | 2.27 |
